Natural-X
Natural X

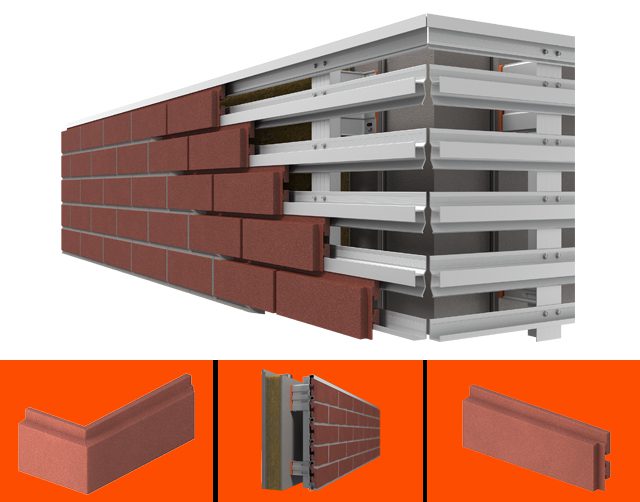

Natural X is a lightweight, mechanically fixed cladding system delivering all the benefits of a natural clay brick façade. Featuring unique clay brick slips and 6063t6 grade aluminium support rails, the system is available in a wide range of colours and textures.
-
-
- Fully mechanical secured brick slips
- Pre-spaced mortar joints
- Solid natural clay brick
- Large reduction in structural load
- Quick installation
- CWCT tested
- BBA Certified
-
Natural-X System
Installation
Technical Data
System Properties
System weight – 58kg/m2
Resistance to wind loading – 2.4kN/m2
Resistance to wind loading – 2.4kN/m2
Brick Properties
Frost resistance – Fully resistant (Tested to EN ISO 10545-12: 1997)
Water absorption – 6.40% (Tested to EN ISO 10545-3:1995)
Breaking strength – 345N (Tested to EN ISO 10545-4:2014
) Thermal expansion – 4.6 x 10-6°C (Tested to EN ISO 10545-8:2004
) Reaction to fire – Class A1
Water absorption – 6.40% (Tested to EN ISO 10545-3:1995)
Breaking strength – 345N (Tested to EN ISO 10545-4:2014
) Thermal expansion – 4.6 x 10-6°C (Tested to EN ISO 10545-8:2004
) Reaction to fire – Class A1
Brick Criteria
Standard brick face dimensions – 215mm x 65mm
Corner brick face dimensions – 102 x 215 x 65mm
Brick thickness – 28mm
Corner brick face dimensions – 102 x 215 x 65mm
Brick thickness – 28mm
Design Criteria
Maximum vertical support centres – 600mm
Maximum bracket centres – 600mm
Brick rail length – 3000mm
Top rail length – 3000mm
Starter rail length – 3000mm
Bracket adjustment range – 40mm-300mm
Movement joints – Maximum 6m
Building substrates – Masonry, Concrete, SFS
Maximum bracket centres – 600mm
Brick rail length – 3000mm
Top rail length – 3000mm
Starter rail length – 3000mm
Bracket adjustment range – 40mm-300mm
Movement joints – Maximum 6m
Building substrates – Masonry, Concrete, SFS
We highly recommend products that RGB are associated with to our clients as we know the ordering process and delivery will be hassle free, and the quality will be second to none.
Key Features
Non-Combustible
CWCT testing
Fast Track solution
Lightweight and non-load bearing
Thermal performance
Can be installed from mechanical access equipment
Wide range of textures and colours
Universal sub structure

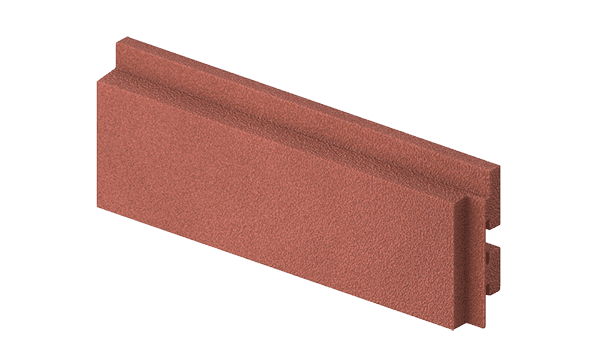

Natural-X Brick Slips
- Uniquely profiled to engage with rail system
- Prefabricated 10mm vertical mortar joints
- Rated F2 ‘Severe Exposure’ Frost Resistance
- Low water absorption – 2.4%
- Colour range including: Red, Orange, Cream, Buff, Grey, Brown & White
- Textures including: Smooth, Dragfaced, Sandfaced
See the latest brick types and finishes with our brick selector tool!
While this tool is in development Contact our Sales team for more information.

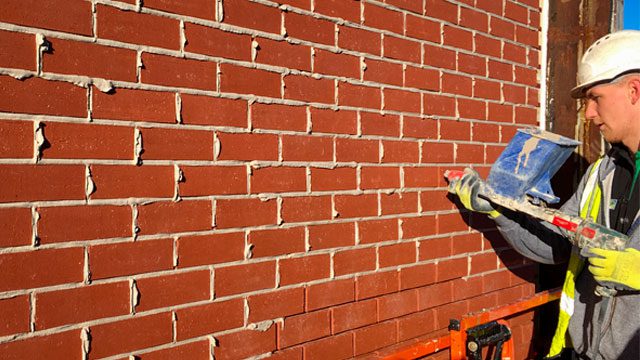

Mortar
- Mortar is applied by gun-injection – known as pointing
- Parex Historic Lime Mortar should be used in line with system specification
- 28 days full cure period
- Network of Parex Approved applicators
- Parex training courses available
Downloads

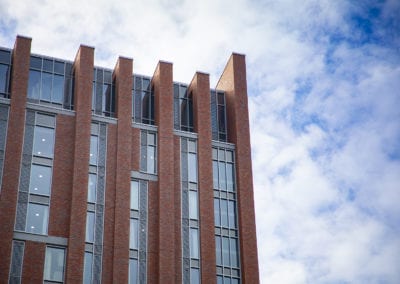

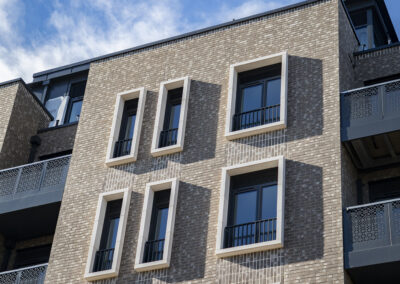

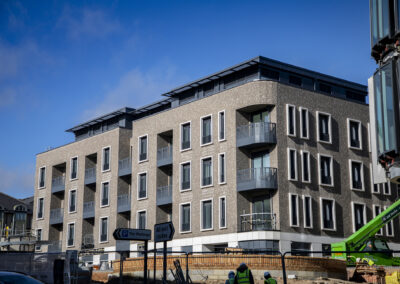

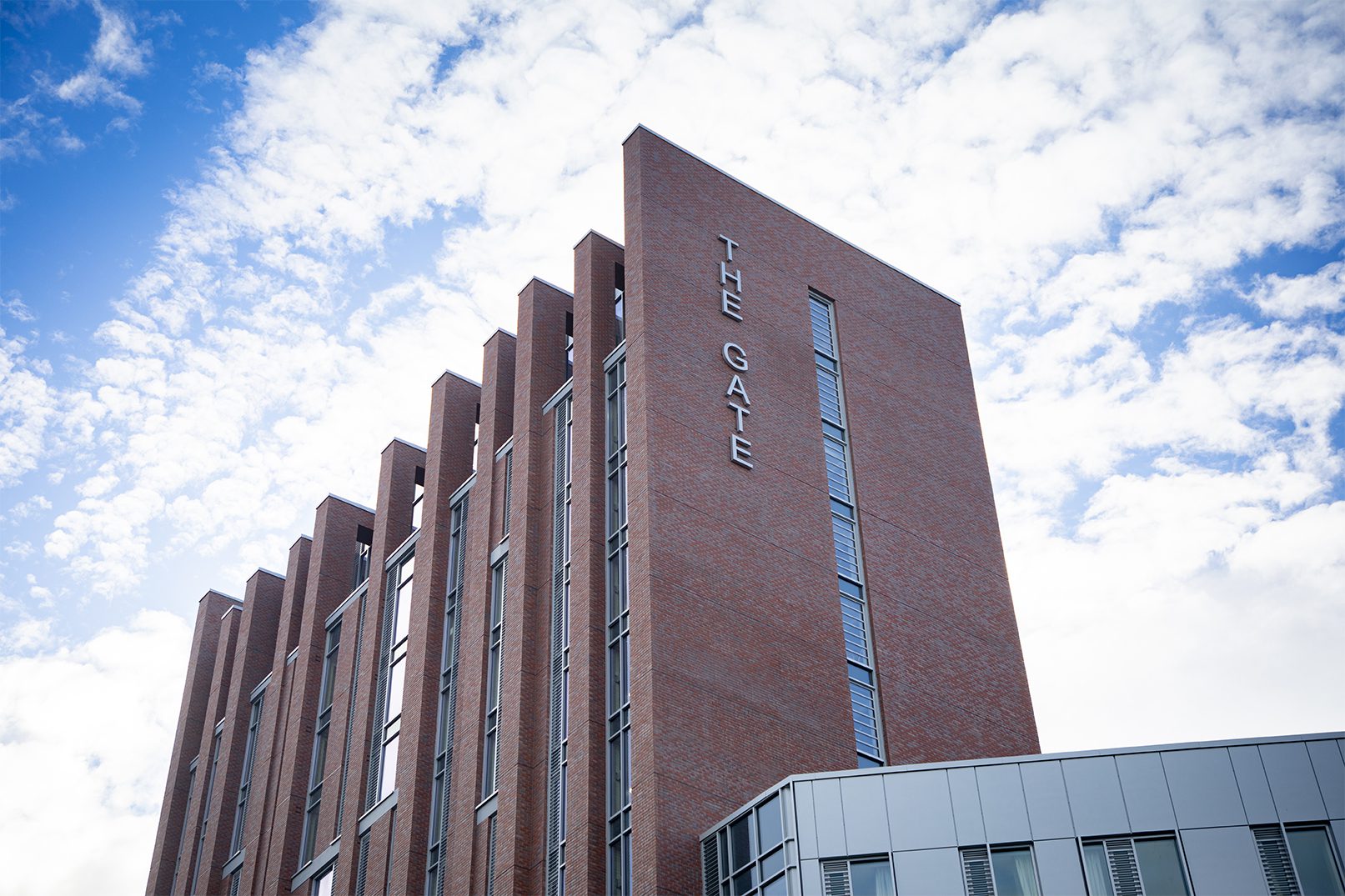

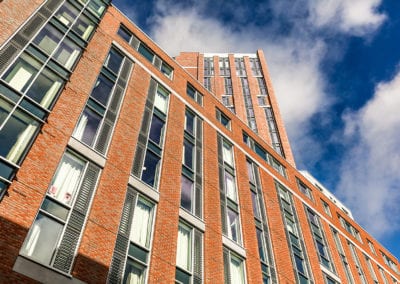

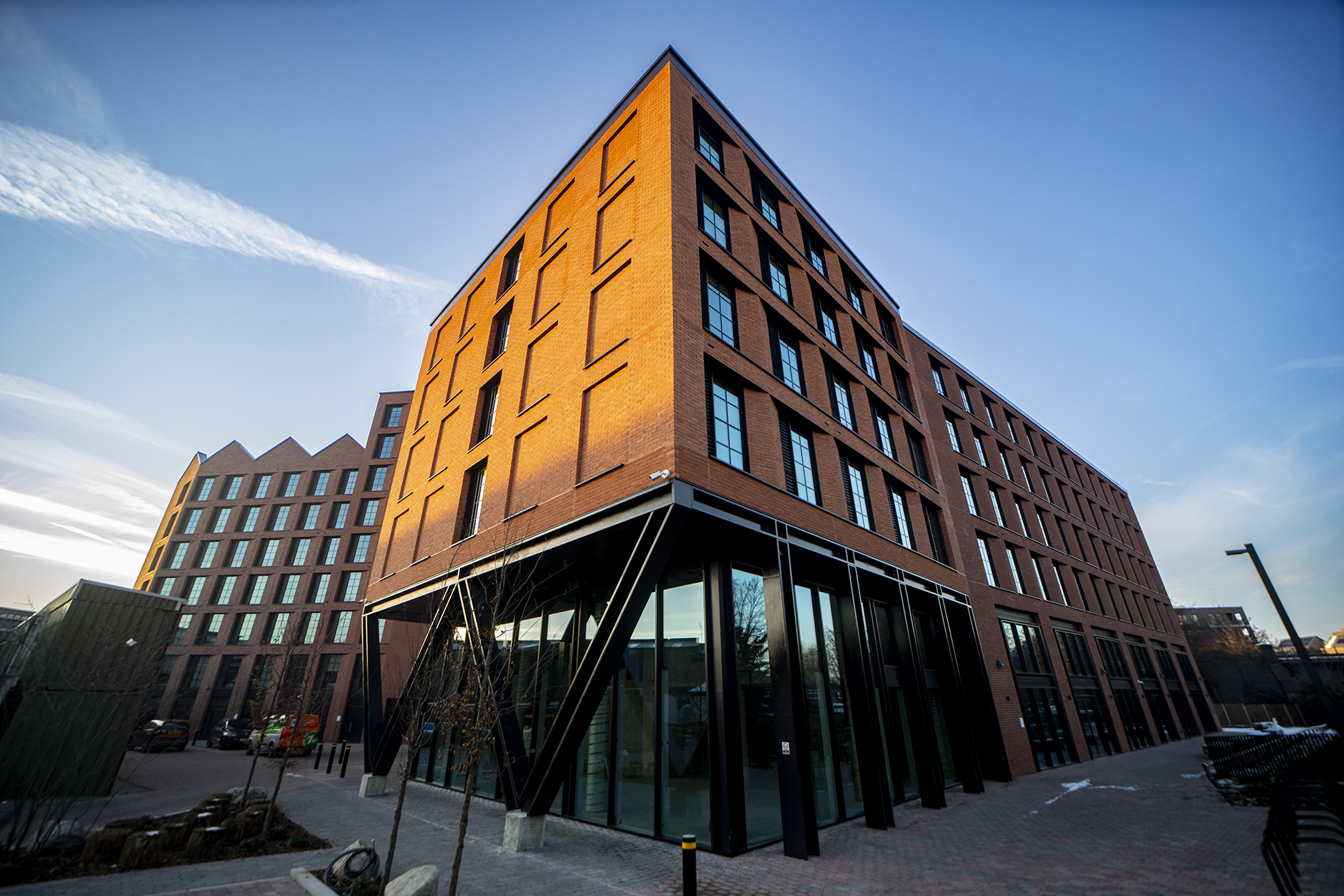

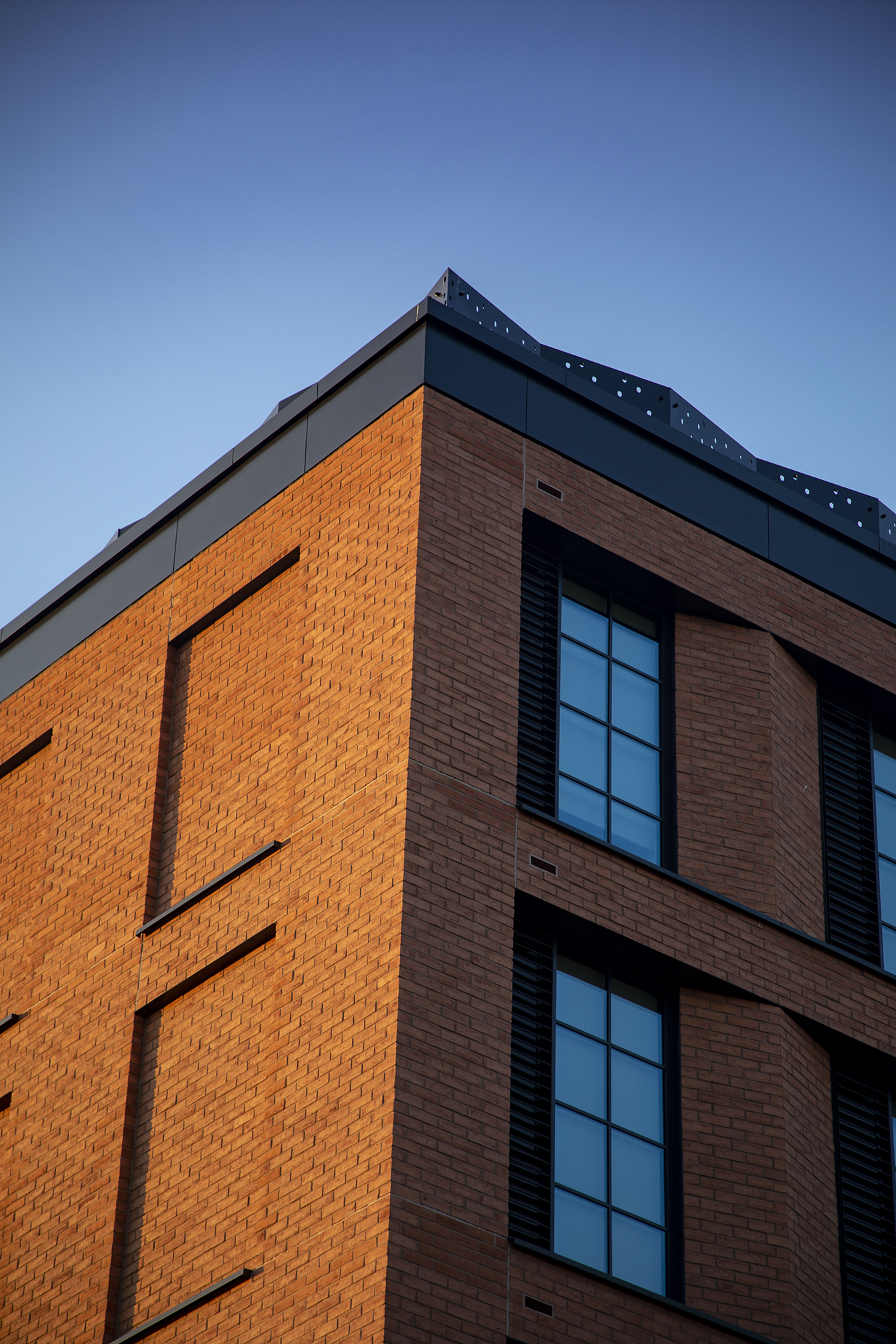

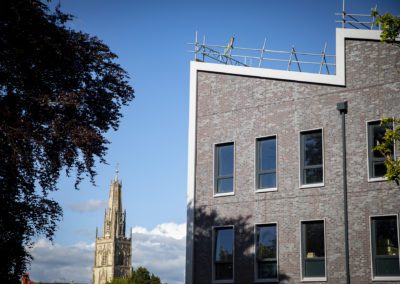

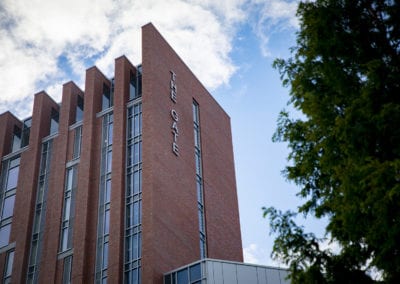

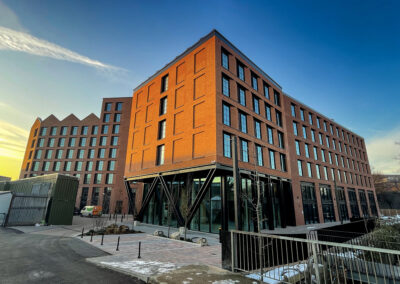

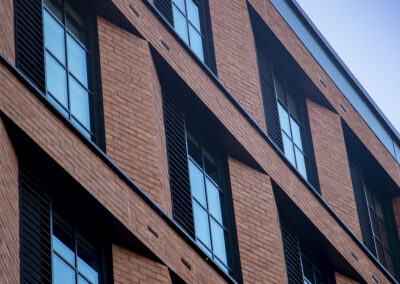

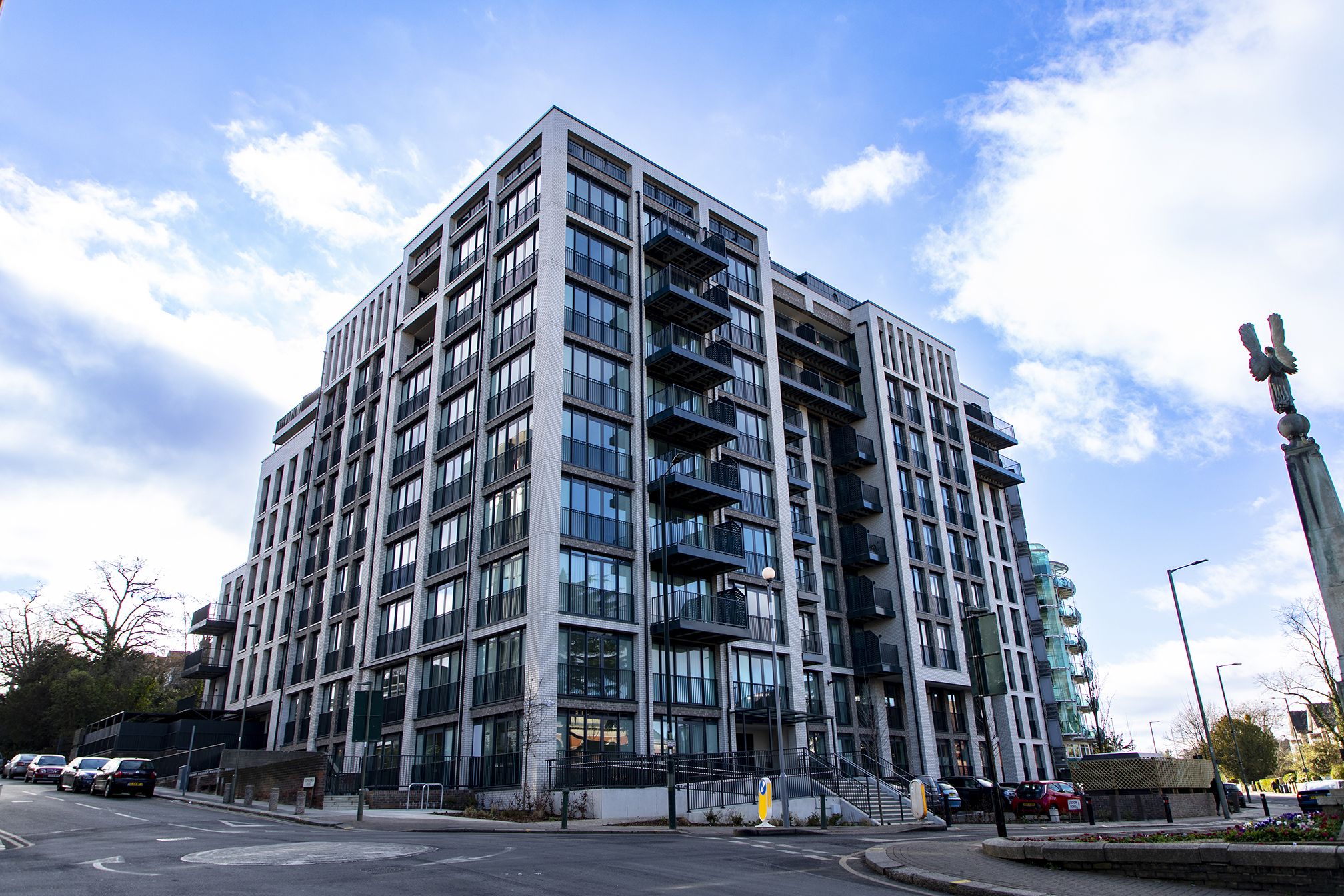

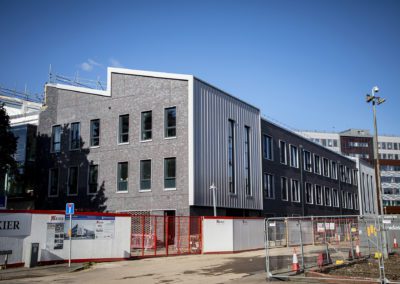

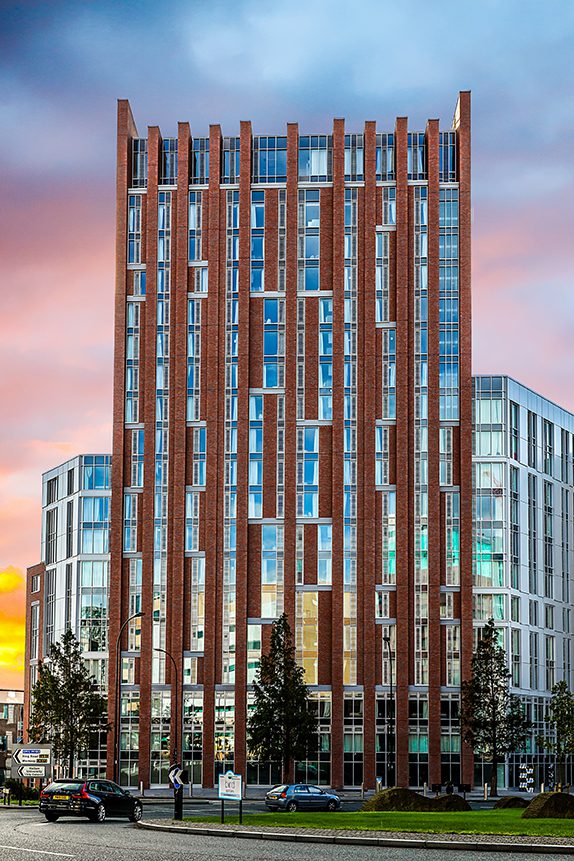

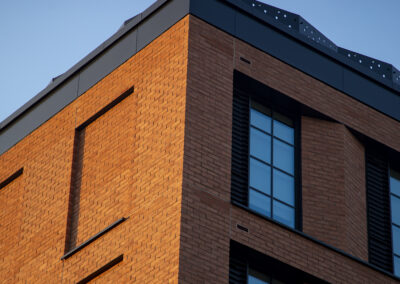

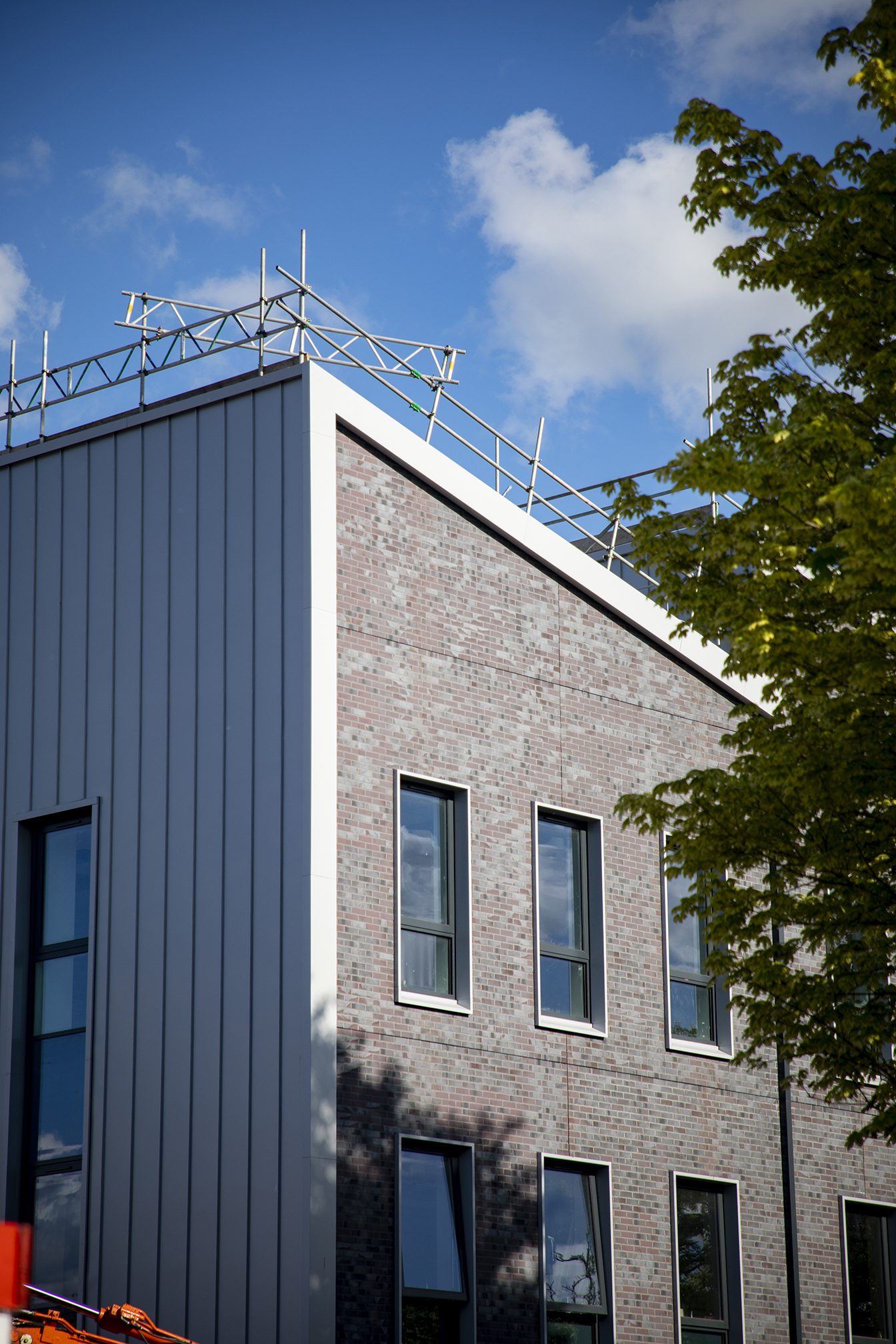

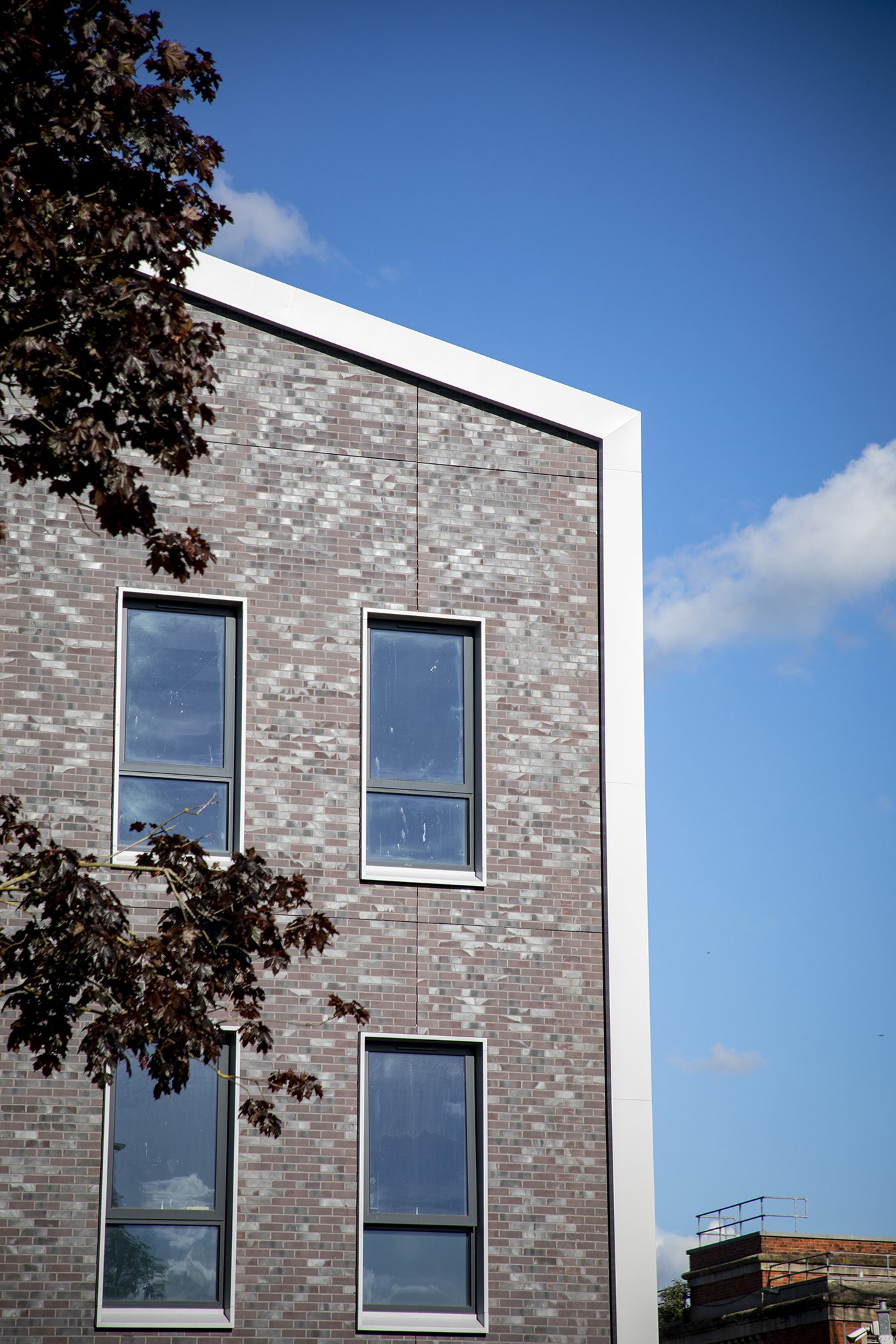

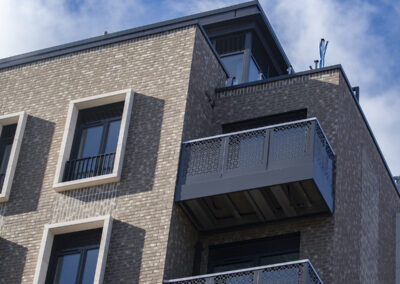

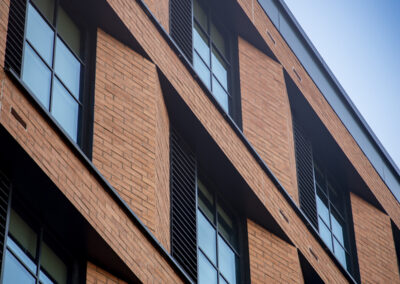

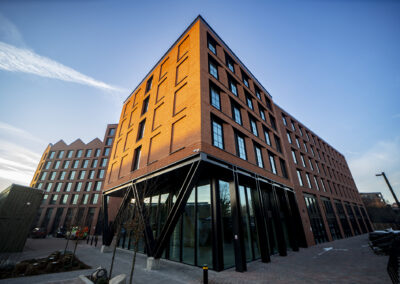

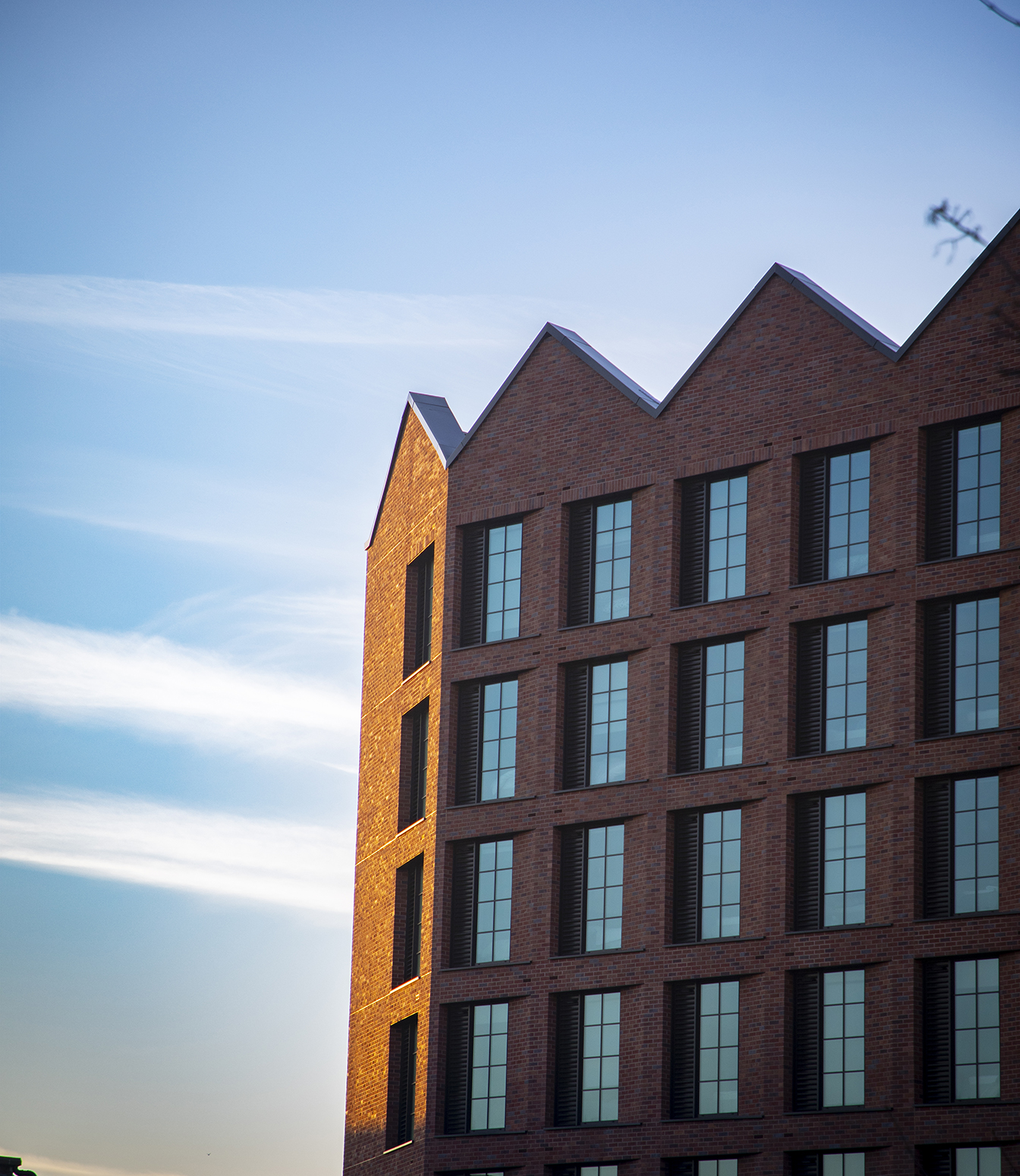

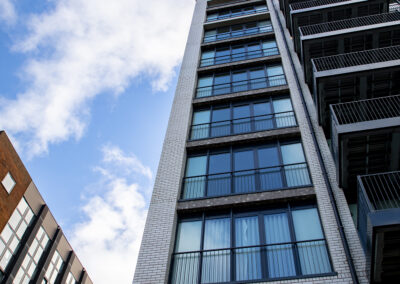

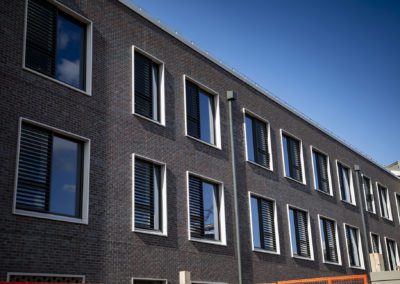

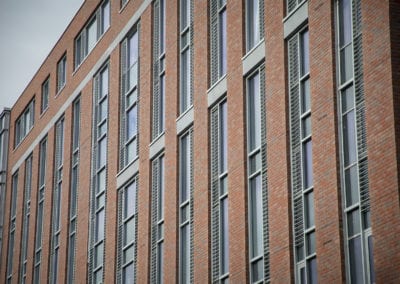

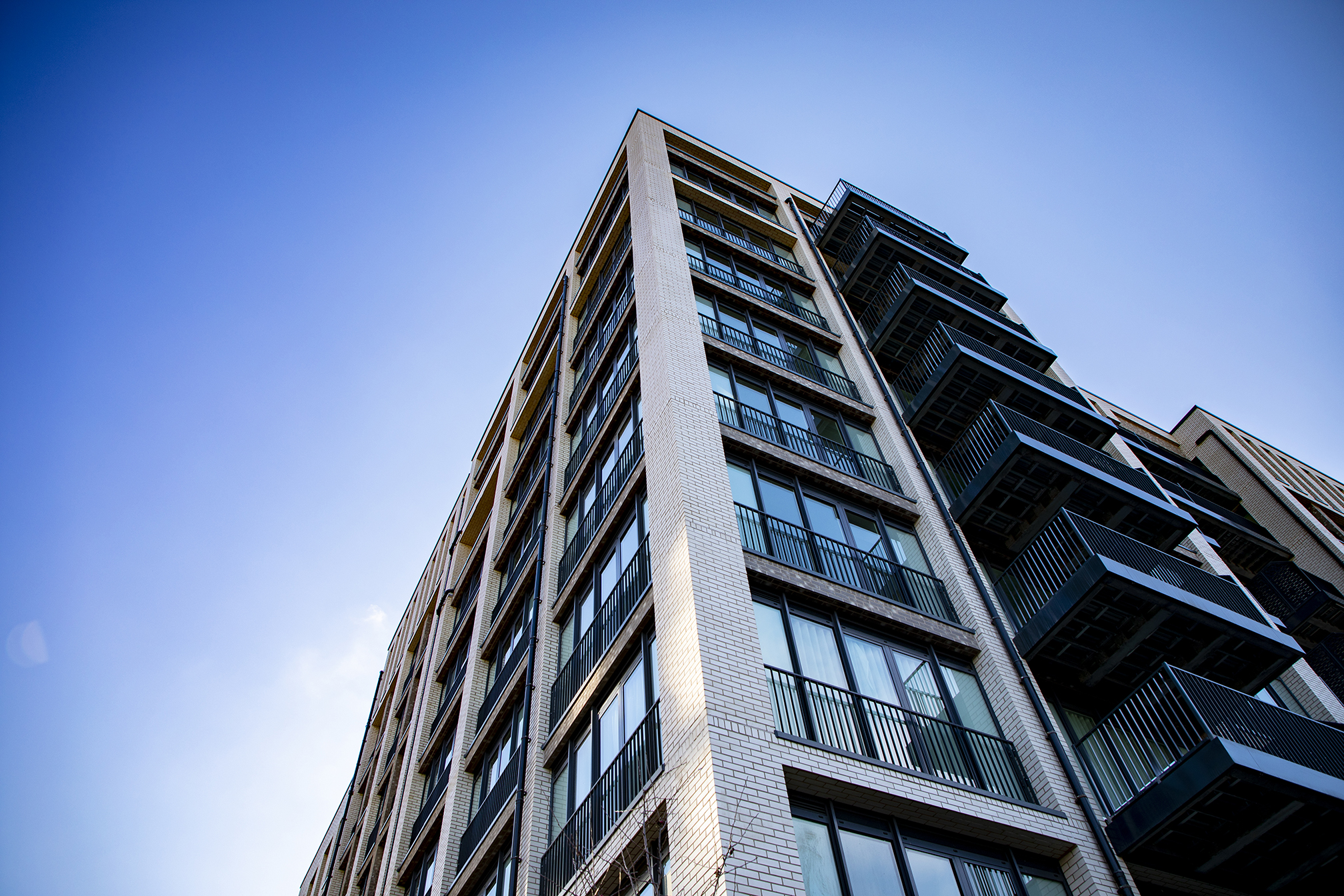

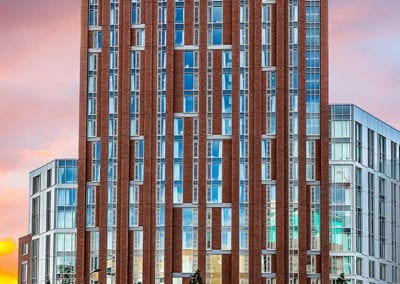

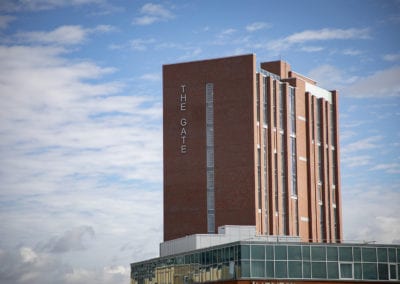

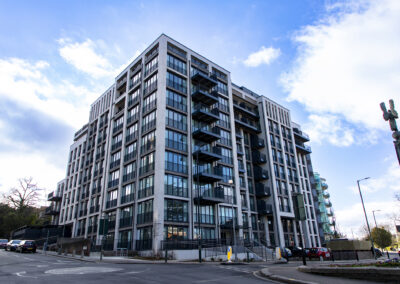

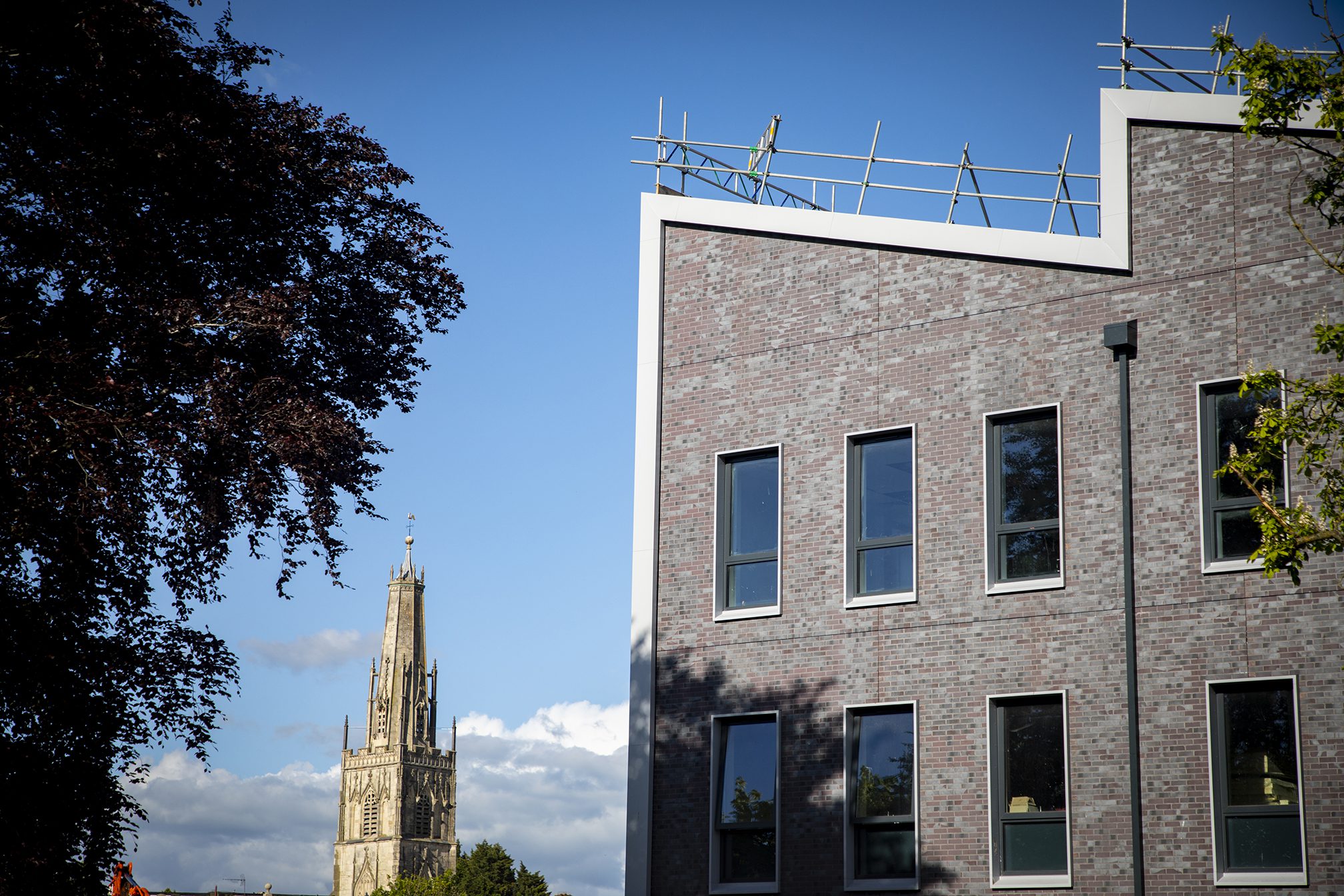

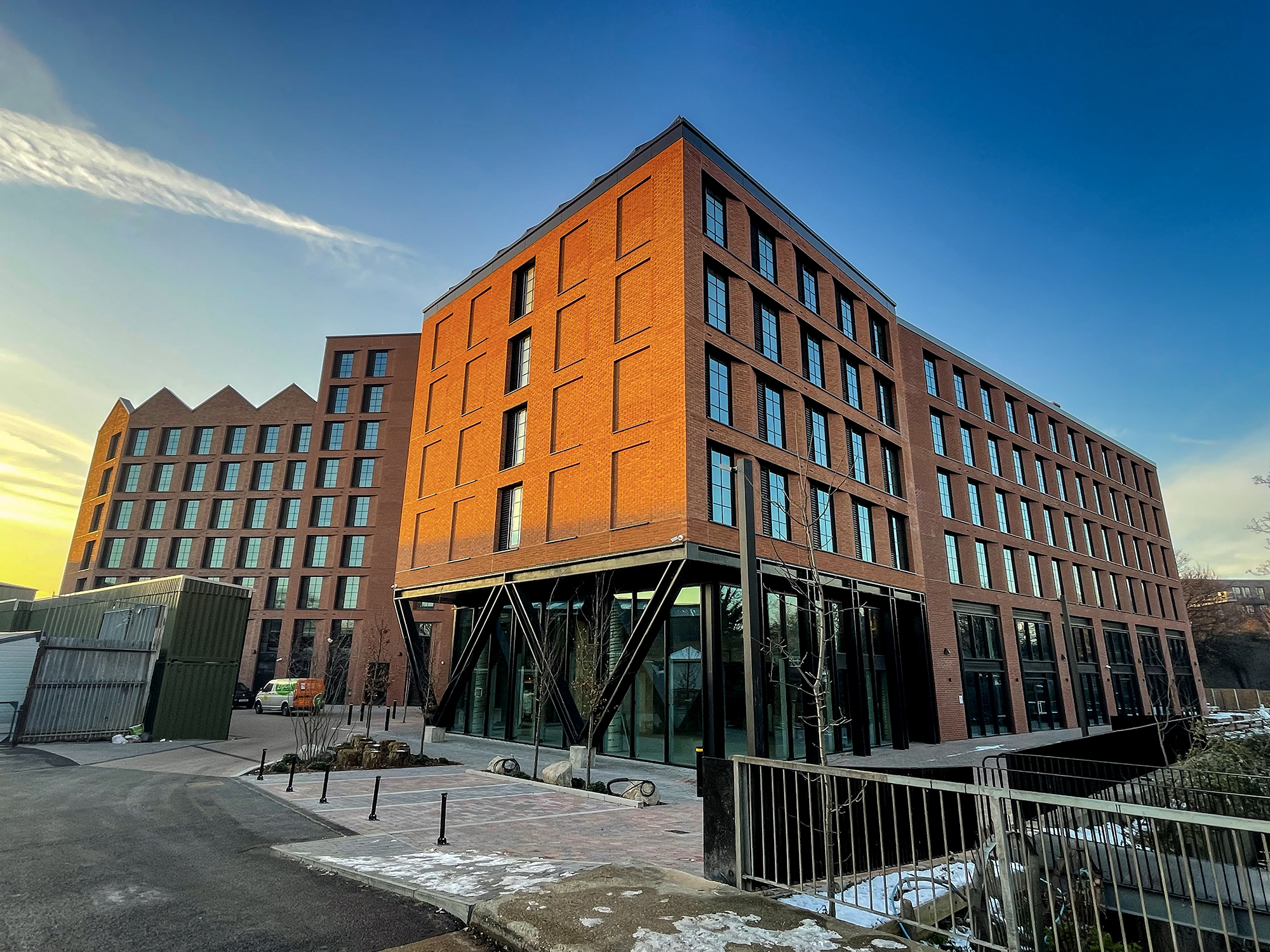

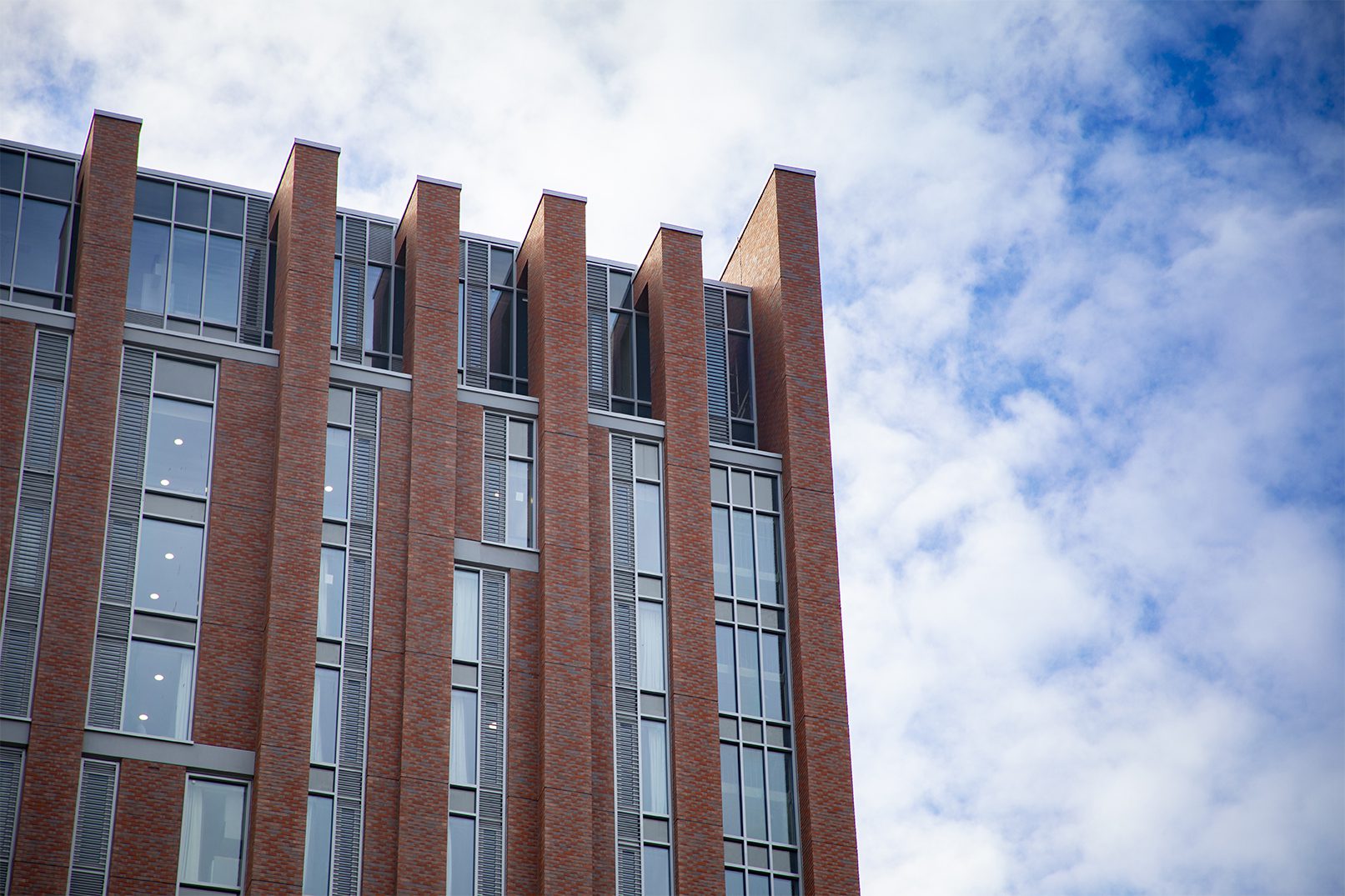

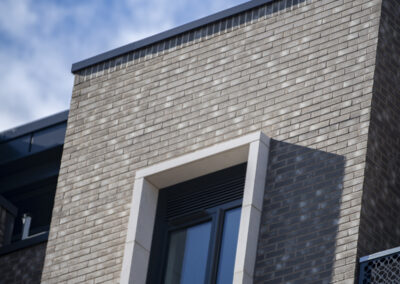

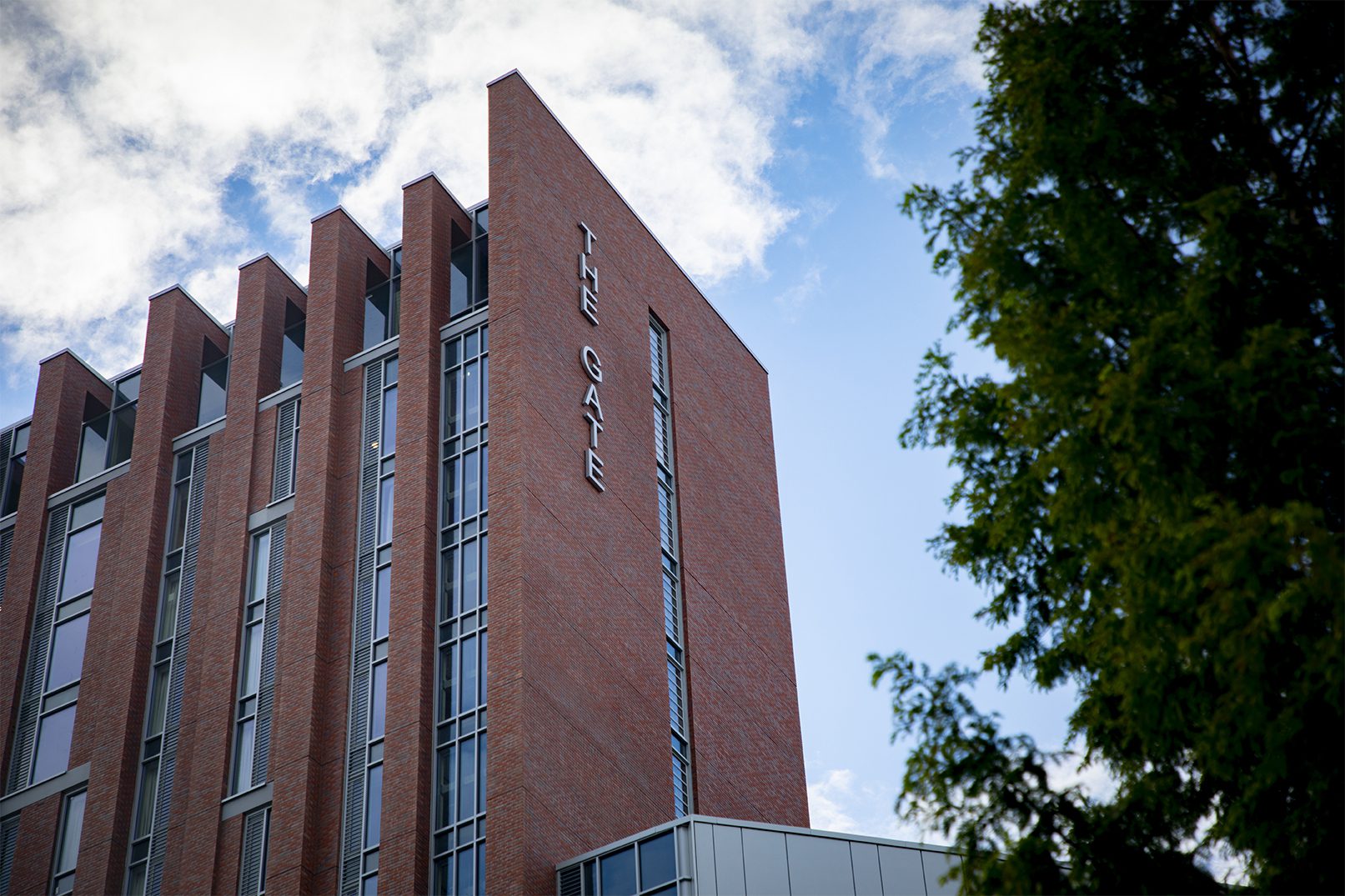

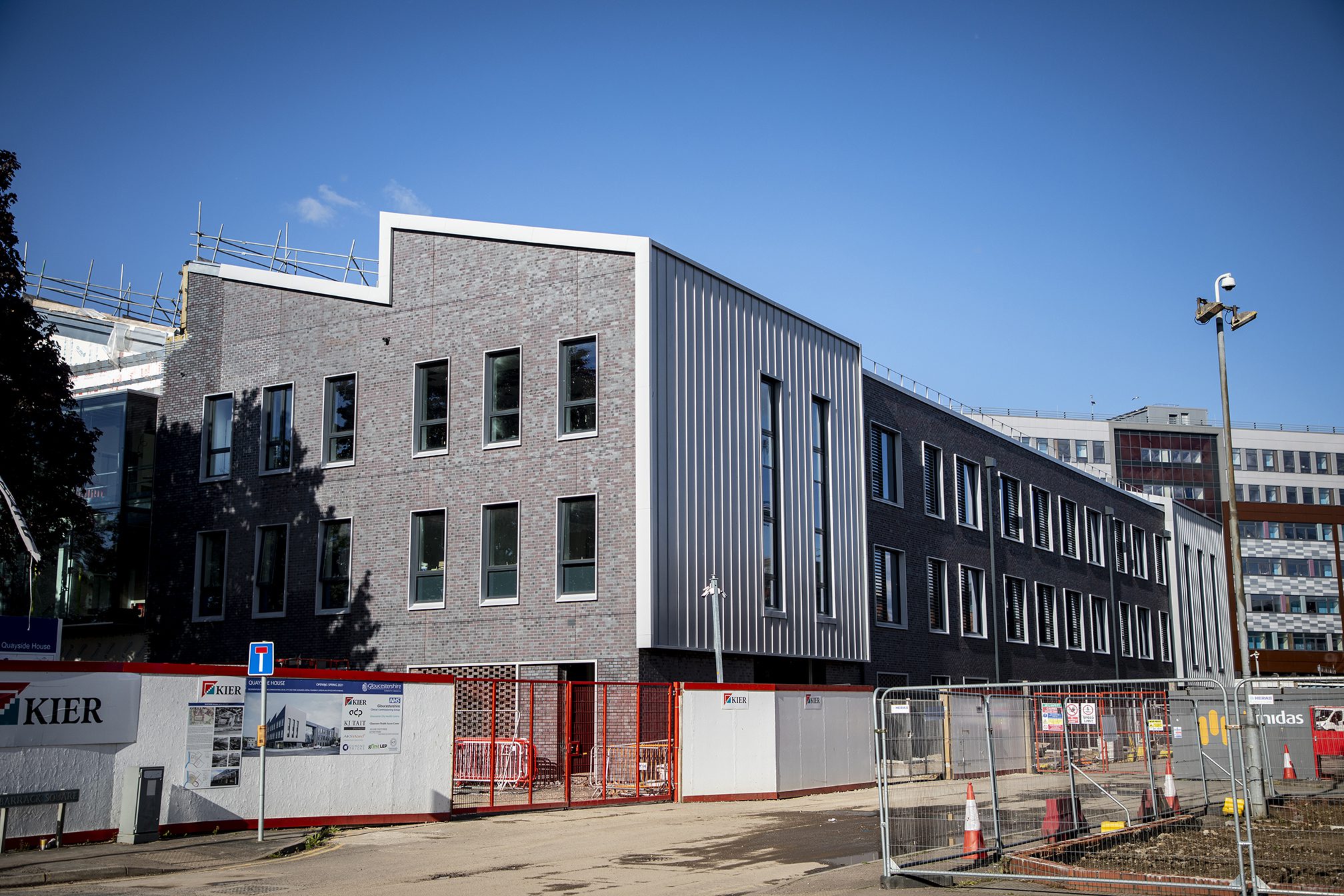

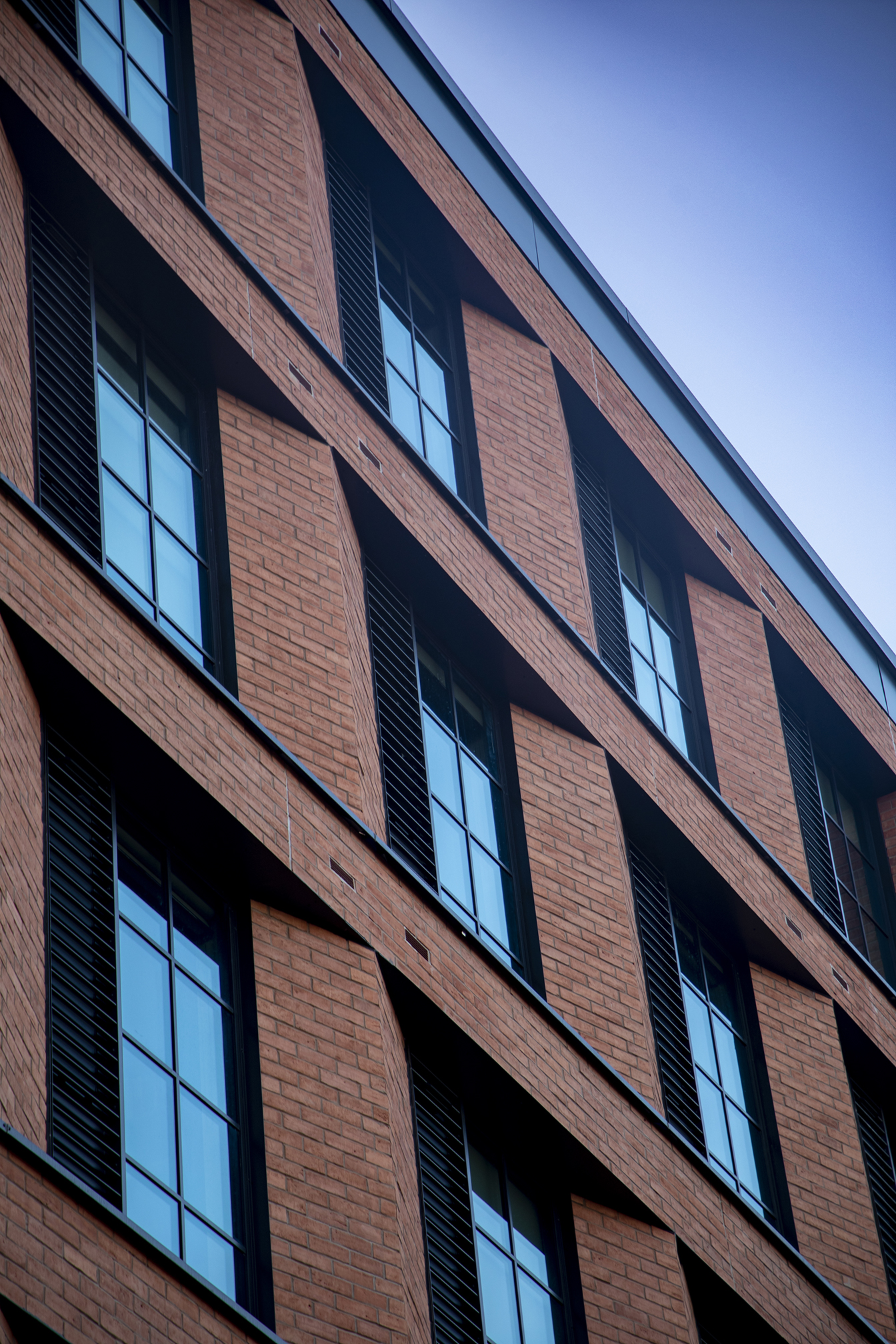

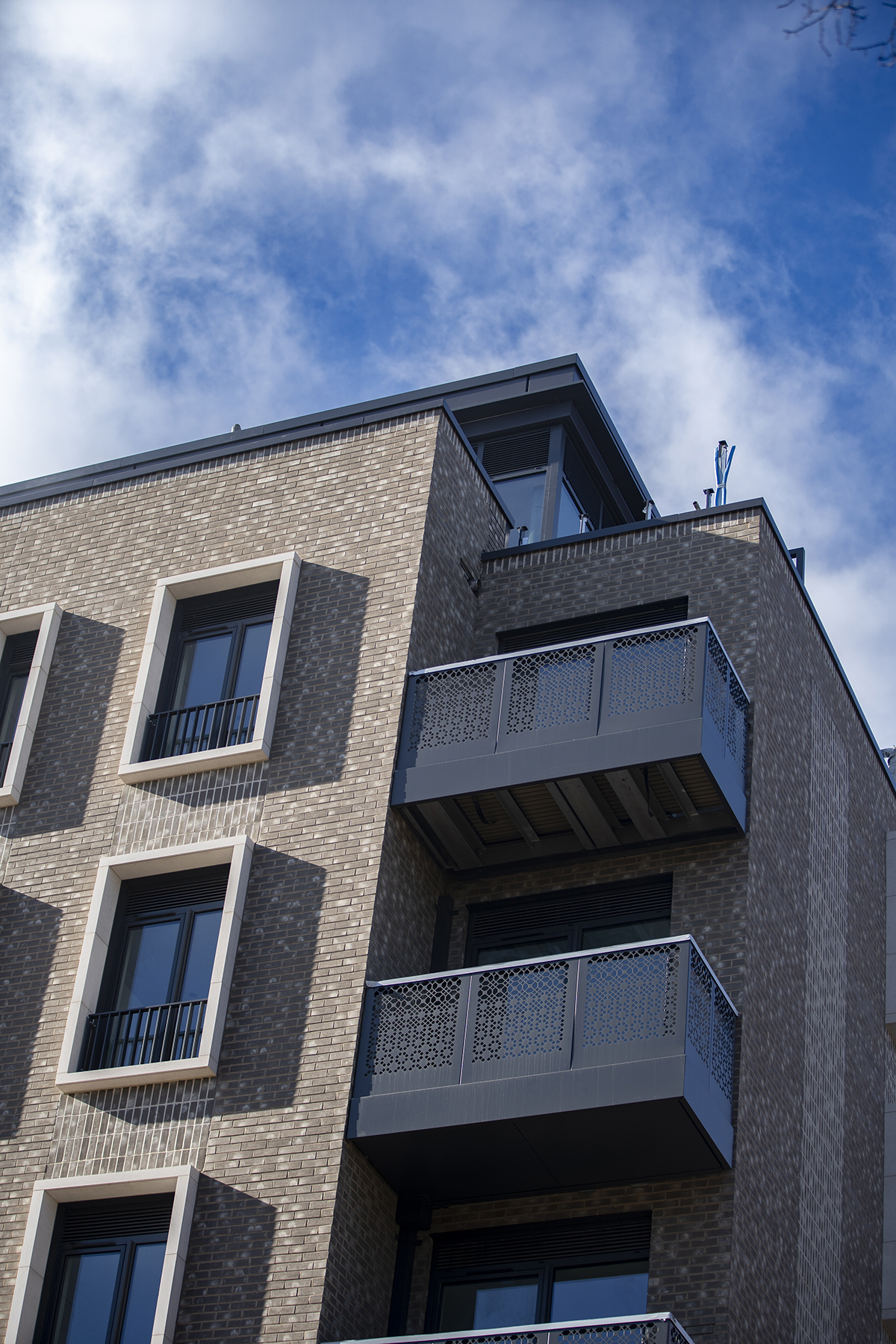

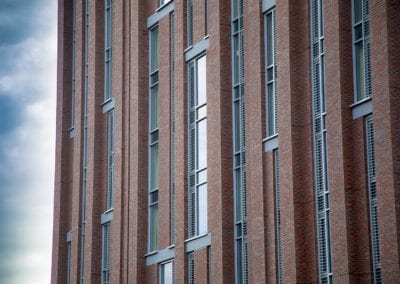

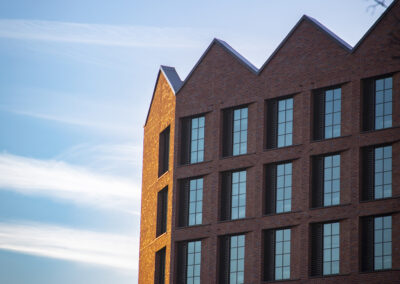

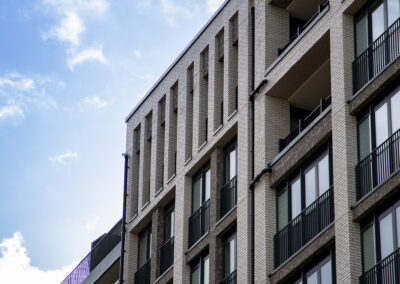

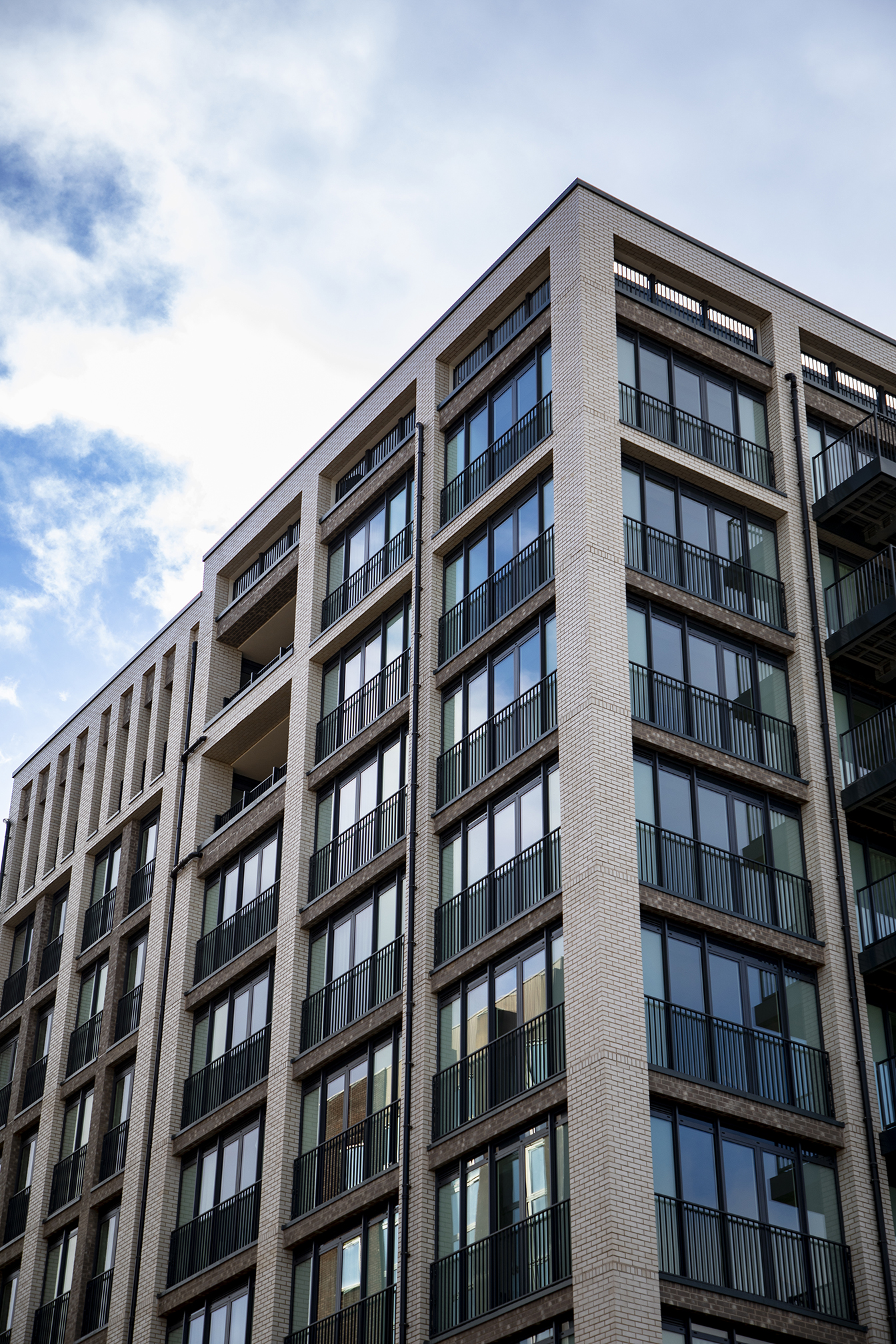

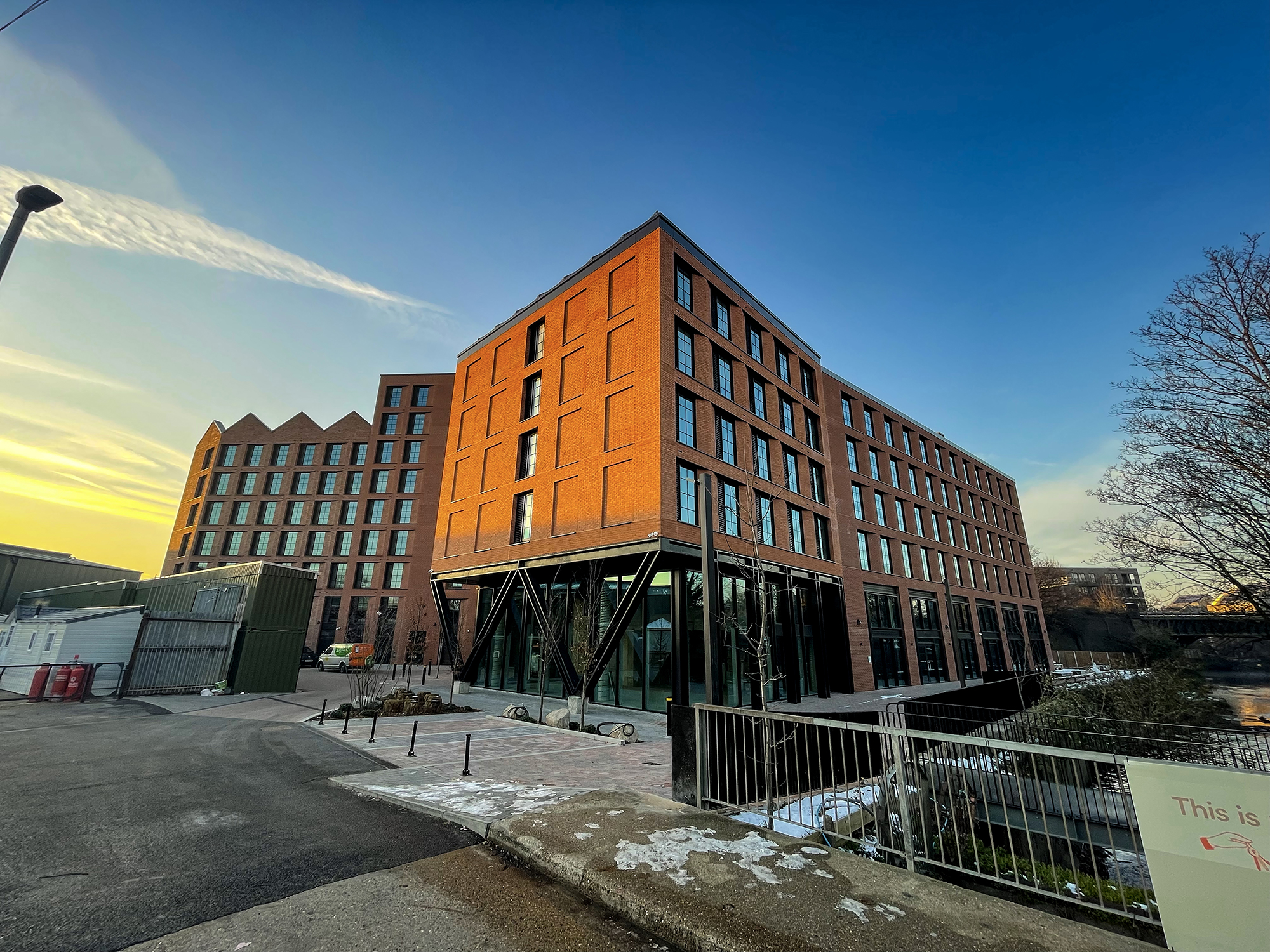

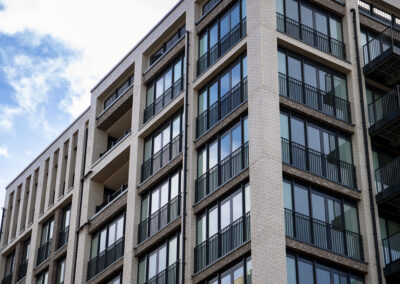

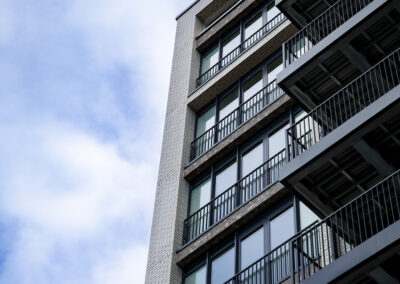

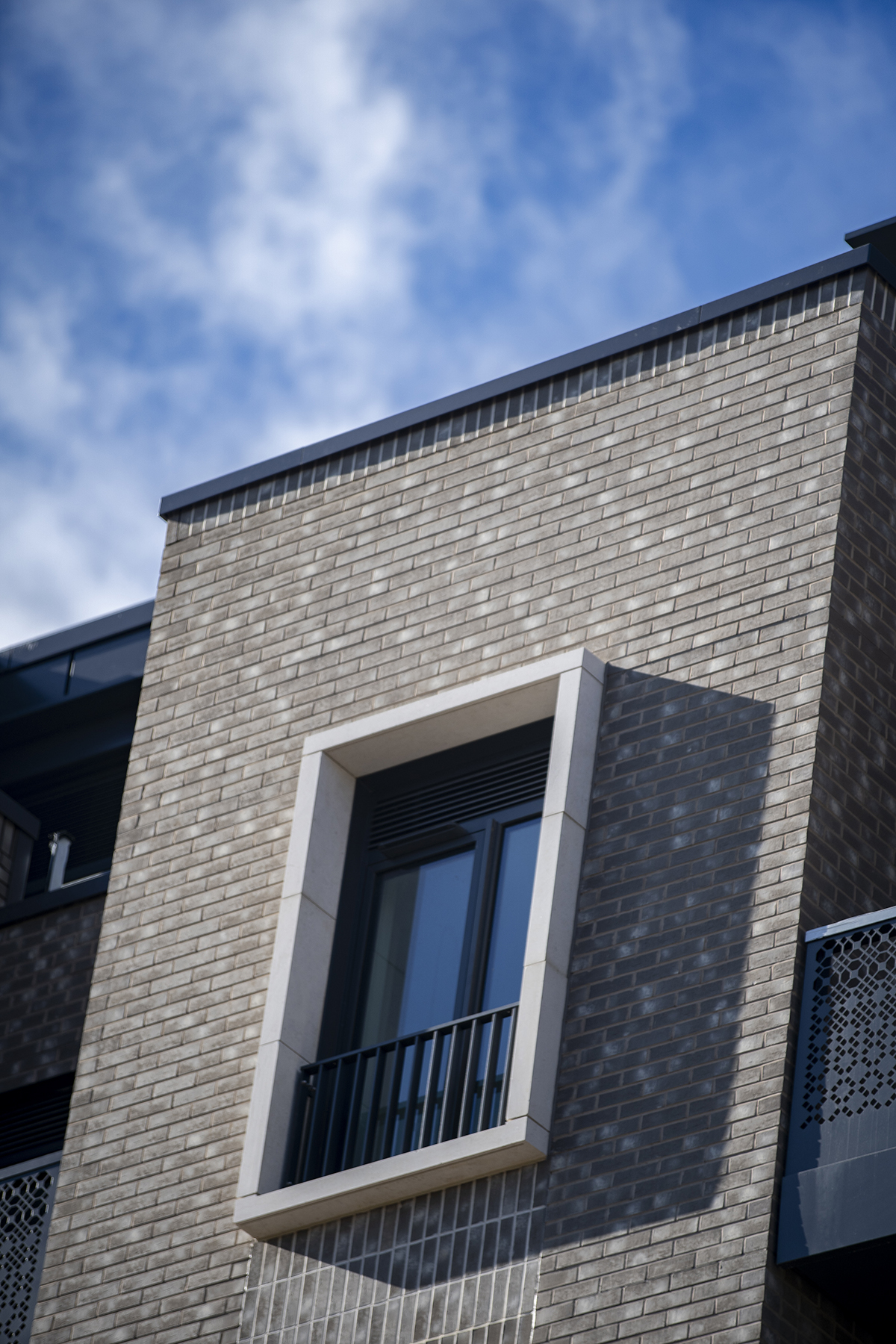

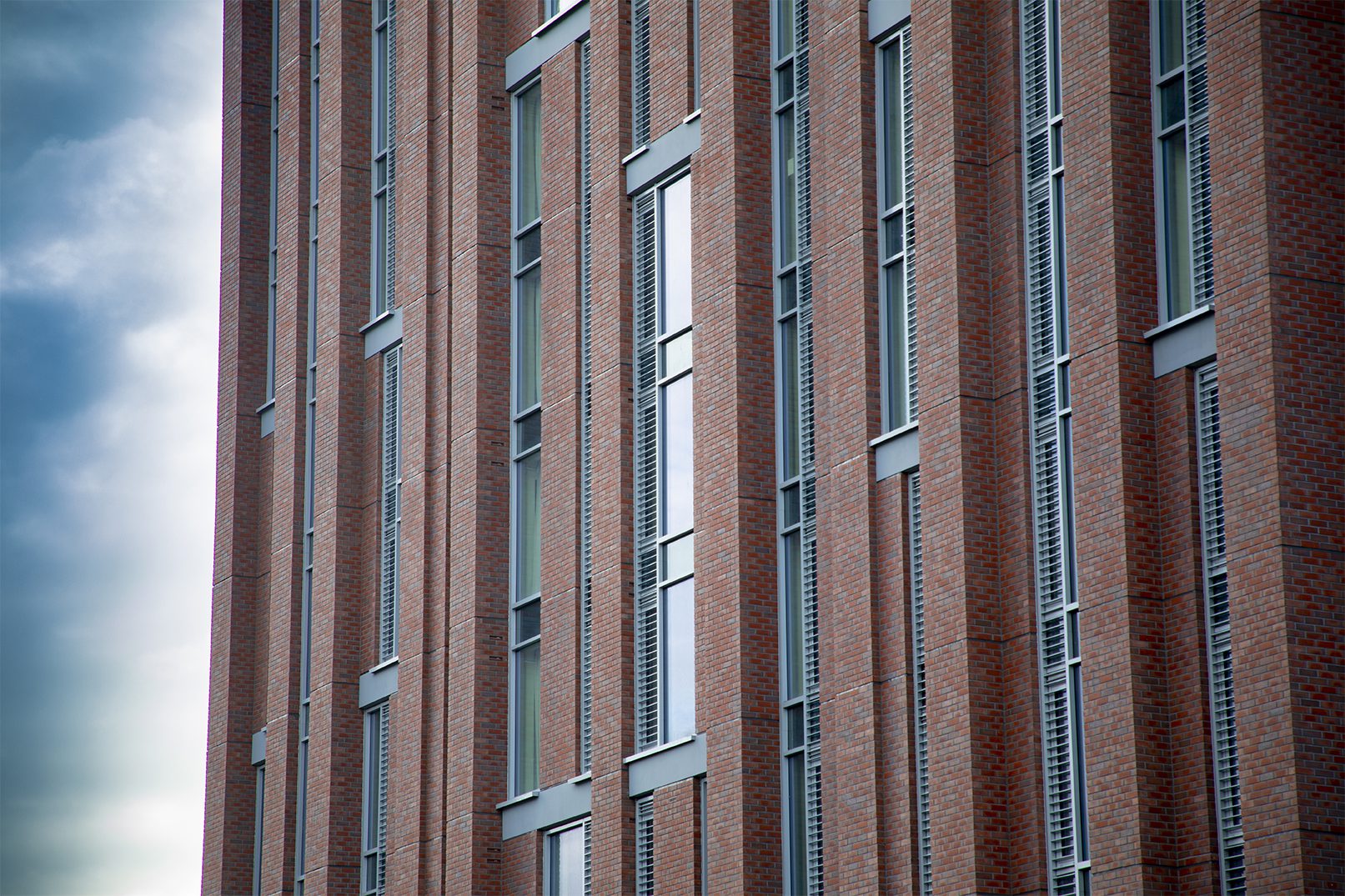

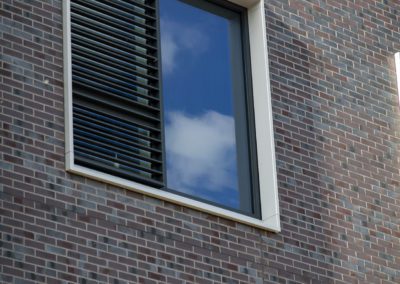

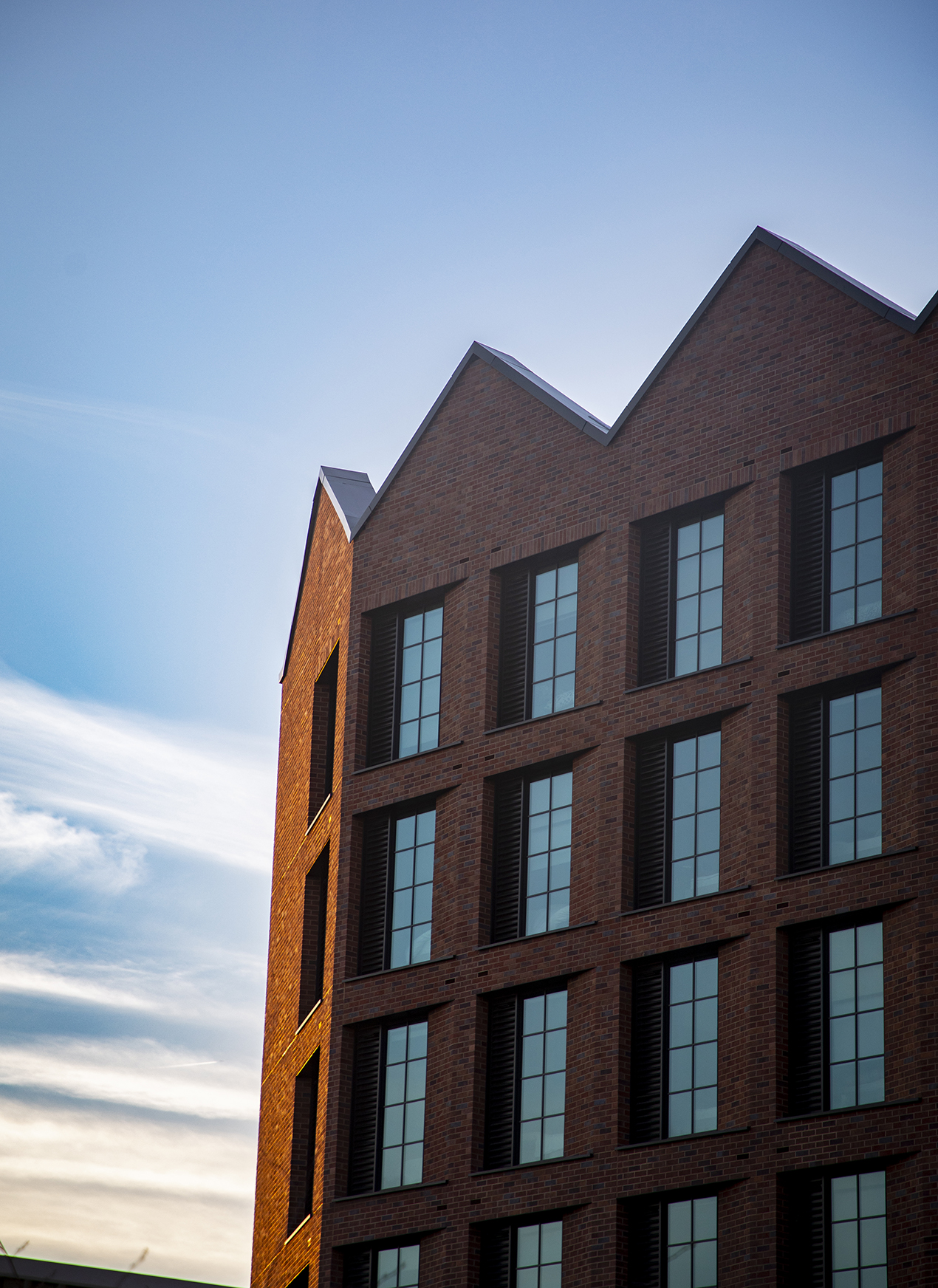

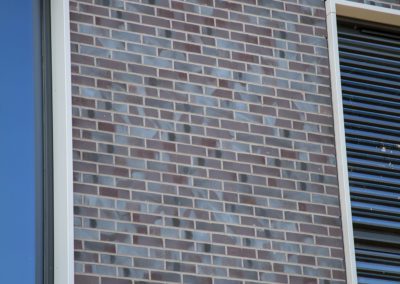

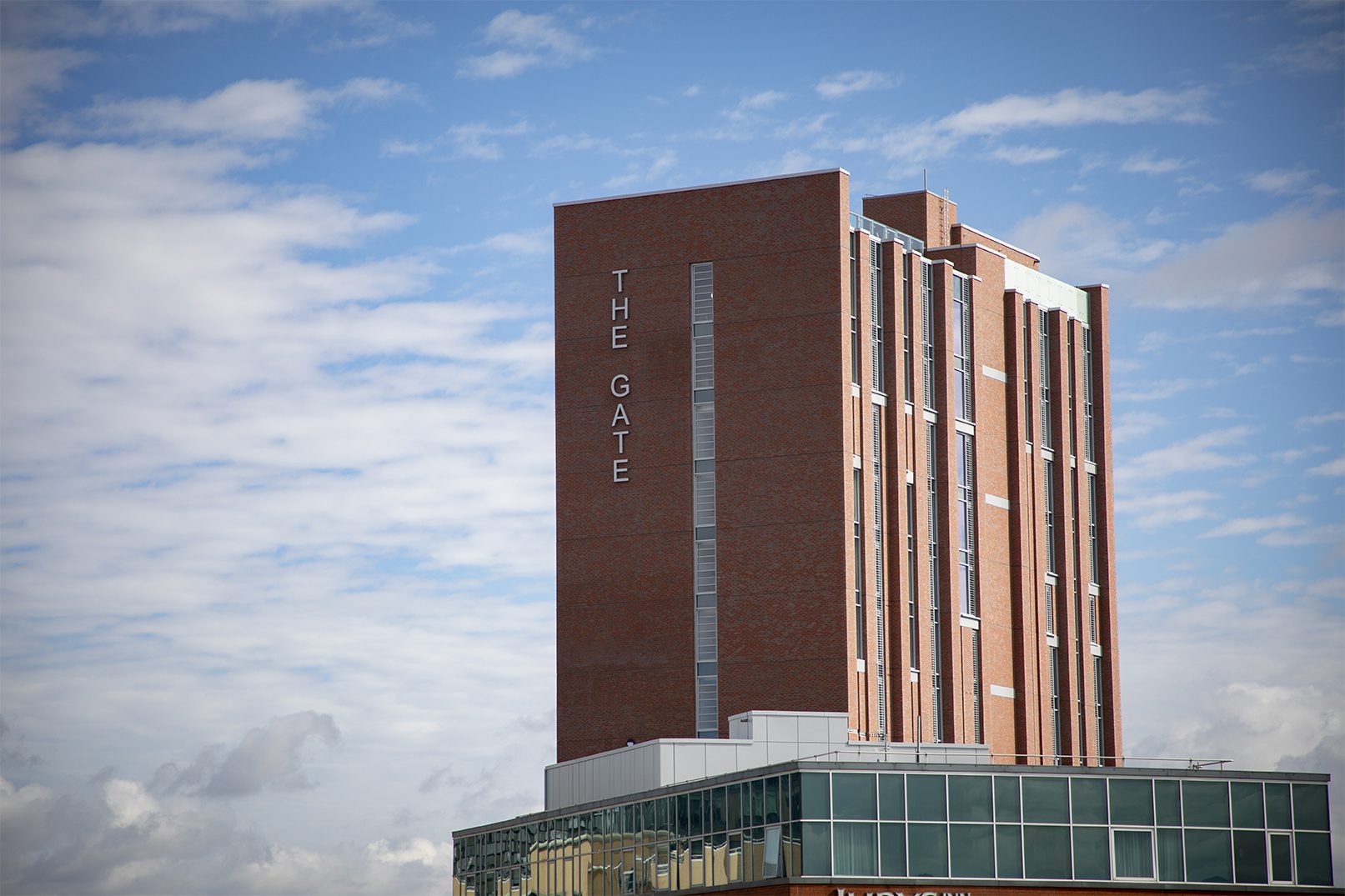

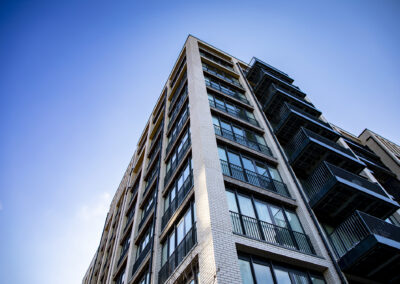

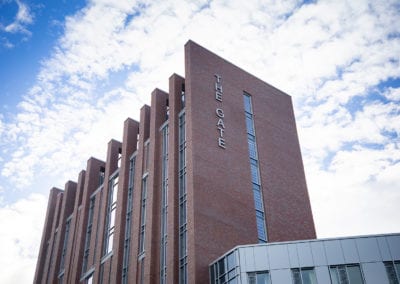

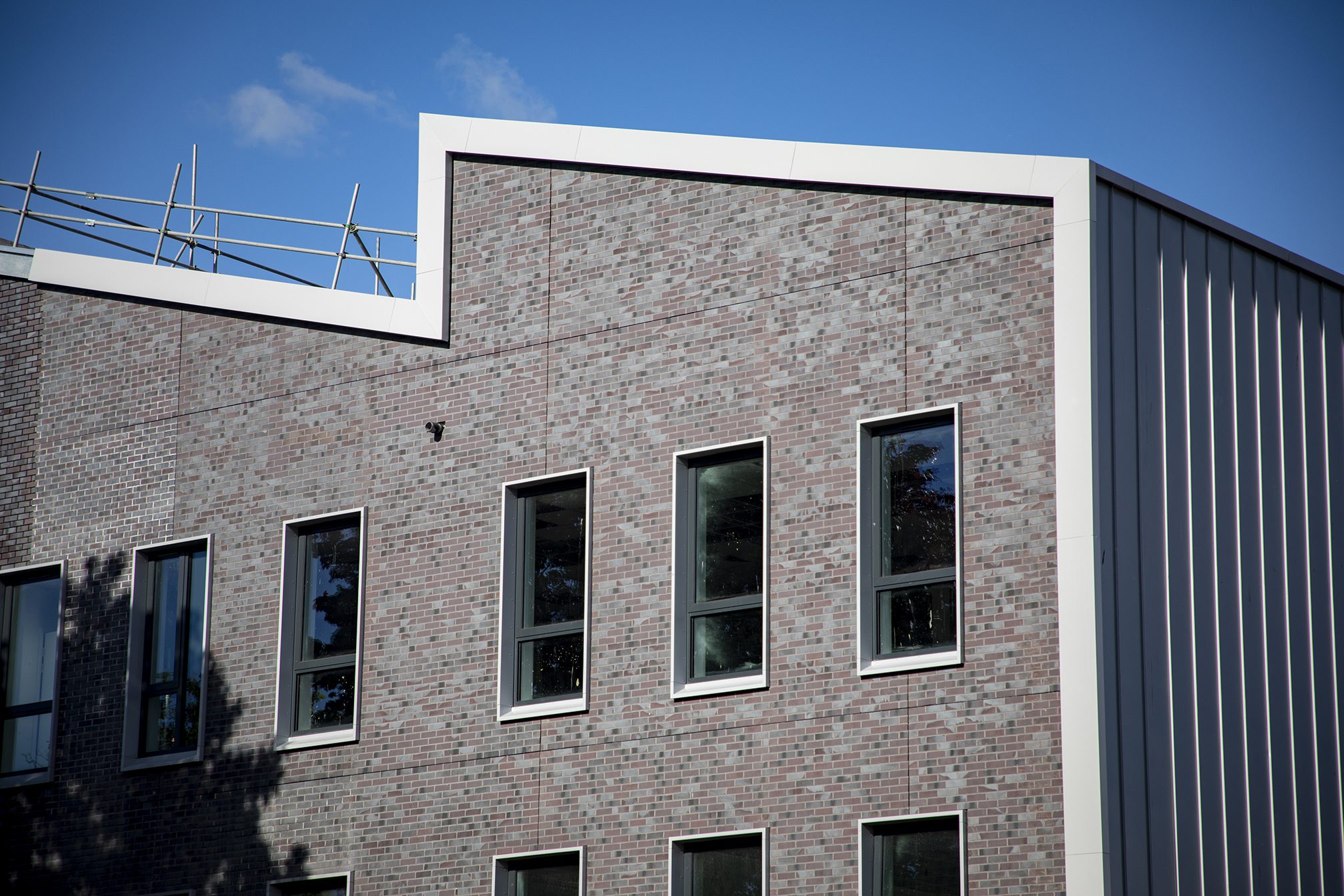

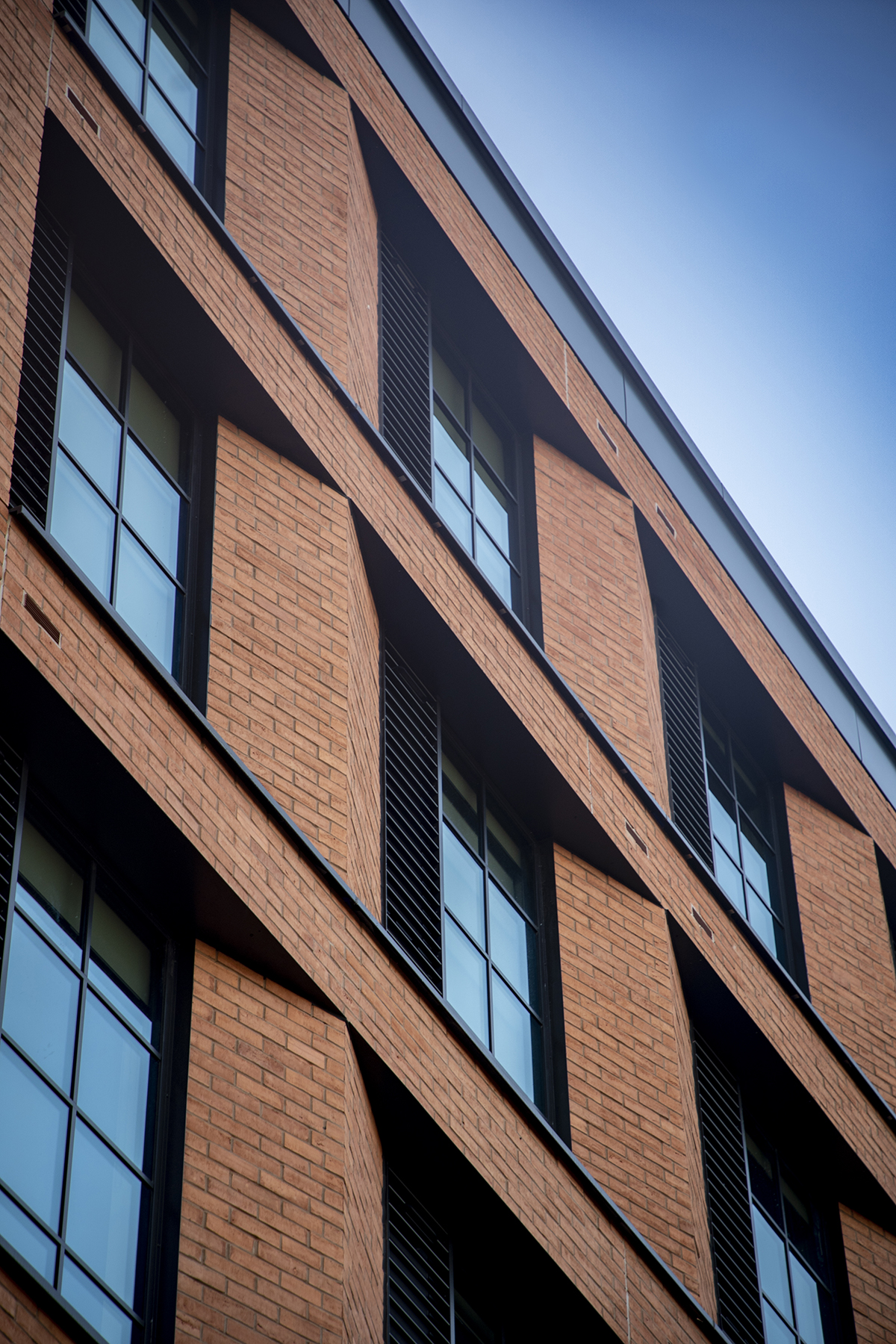

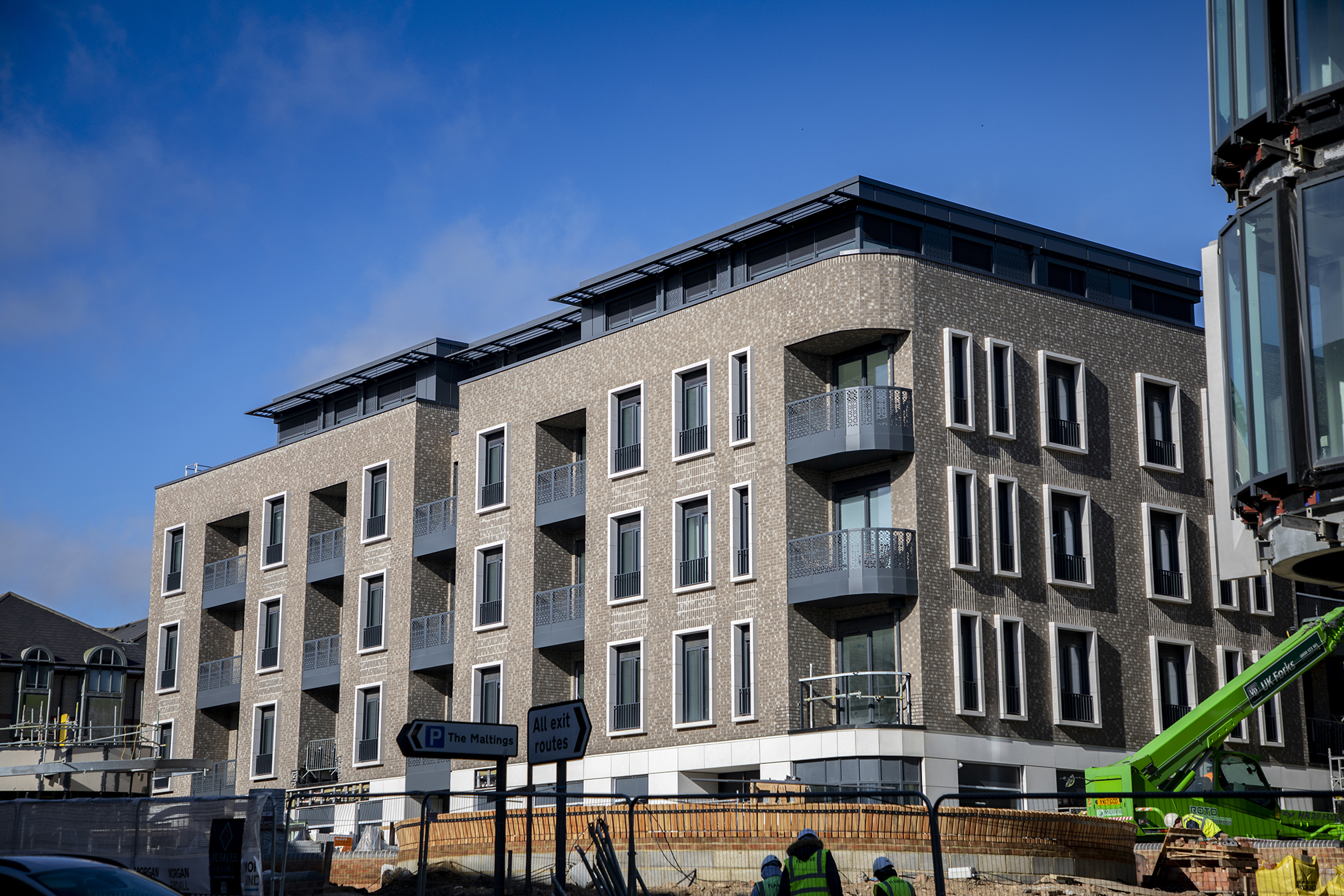

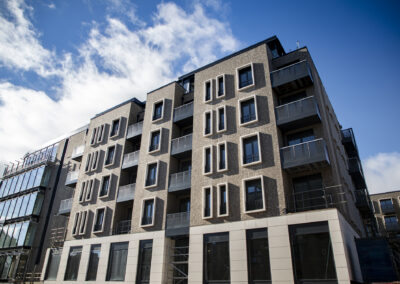

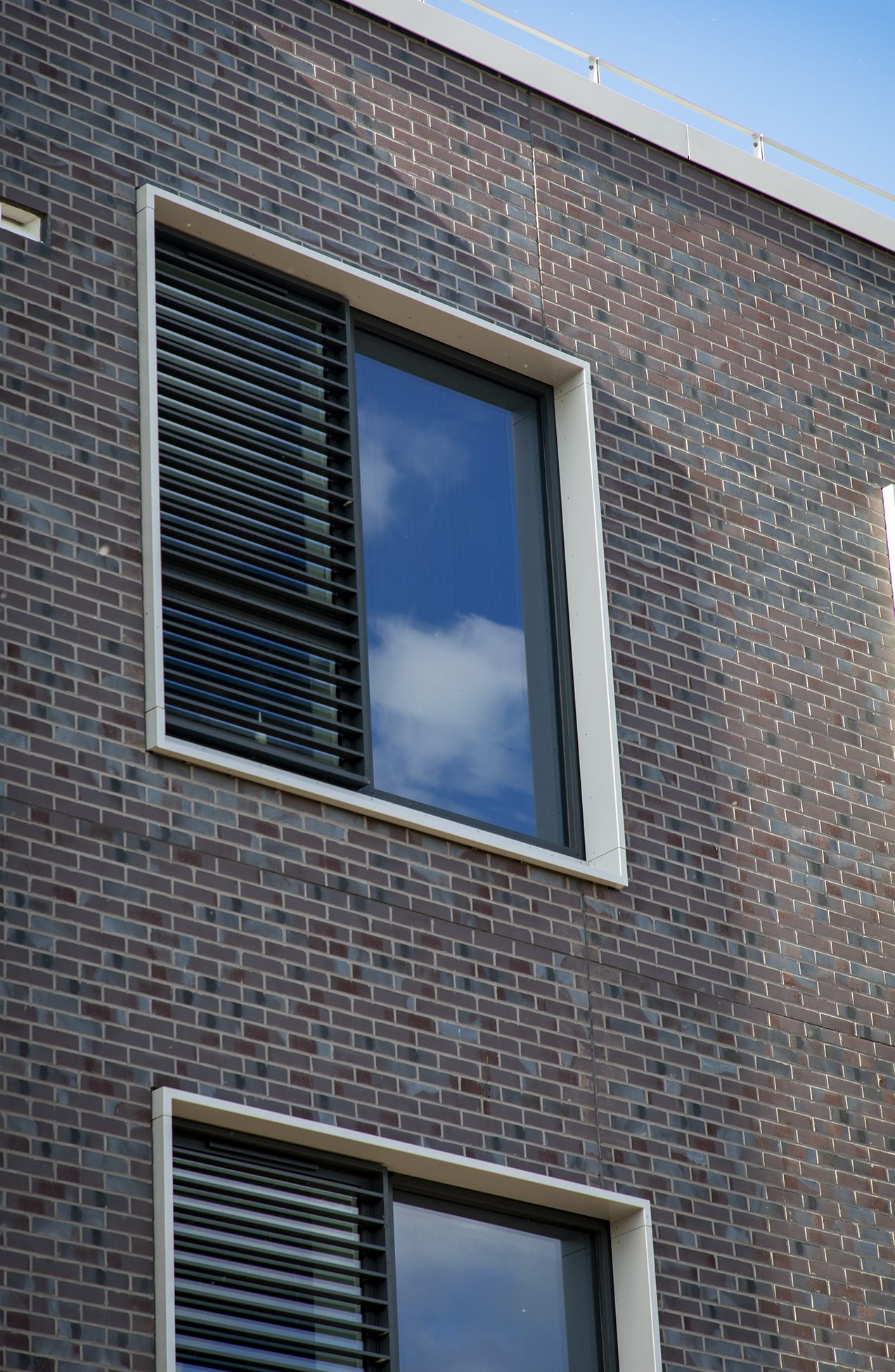

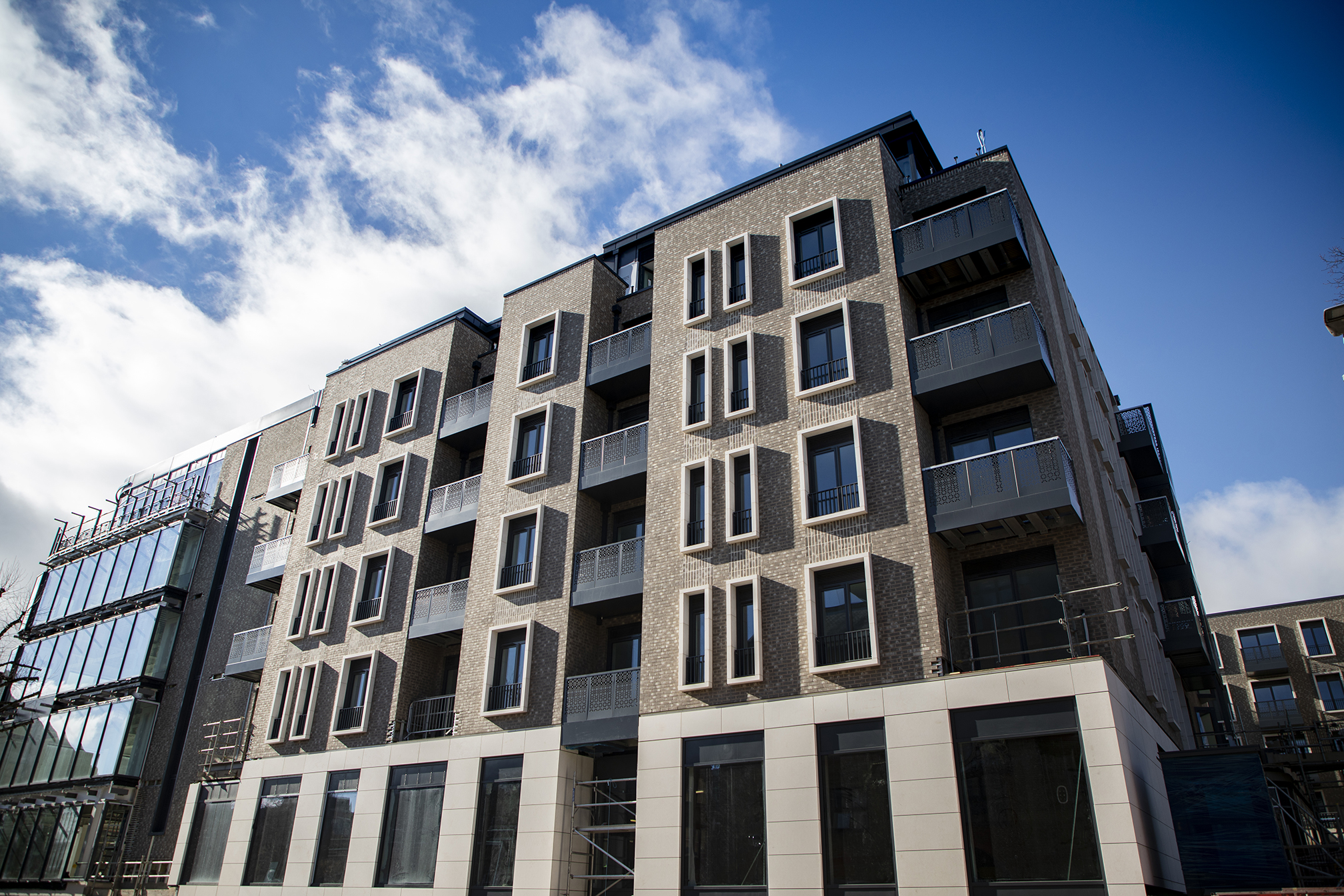

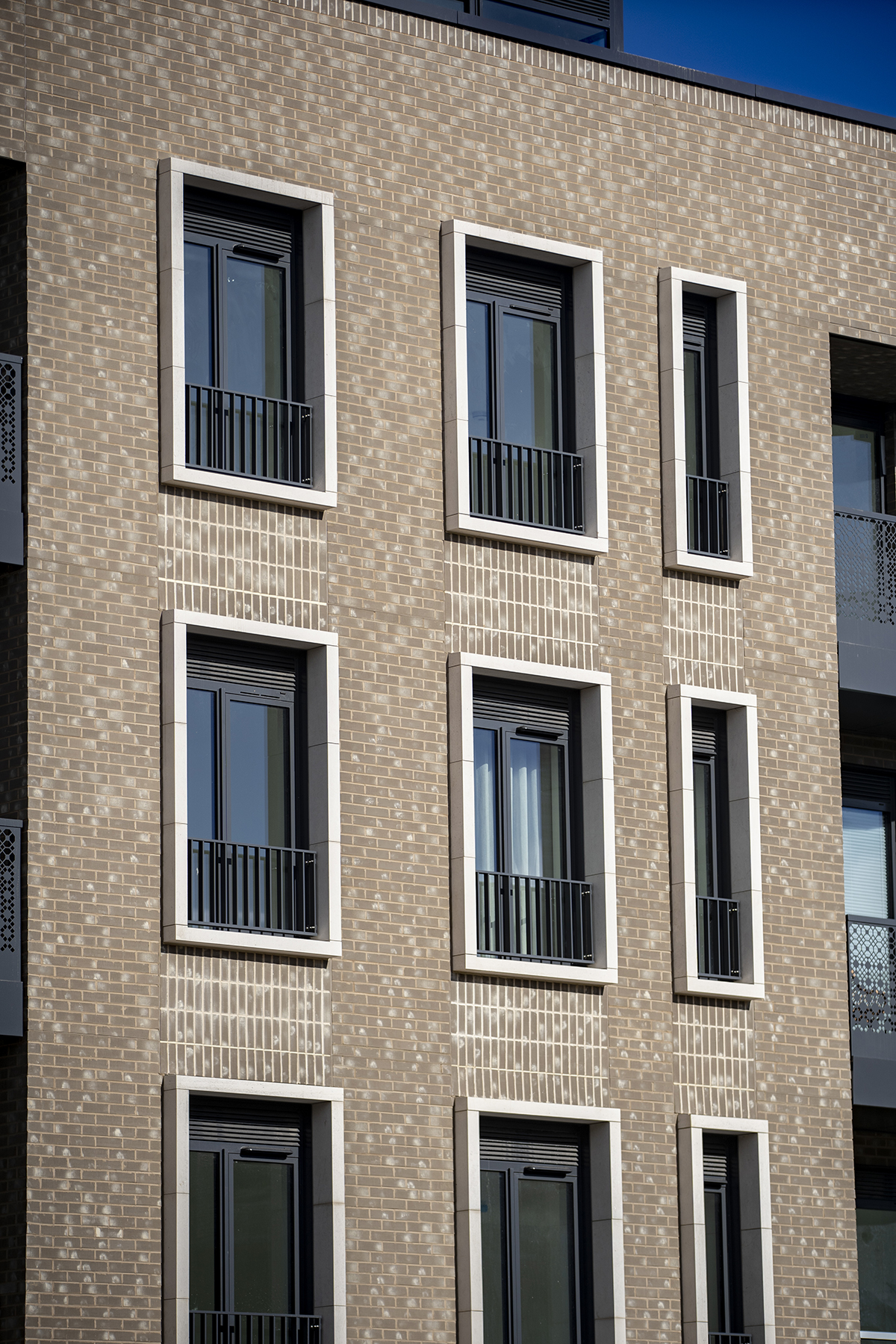

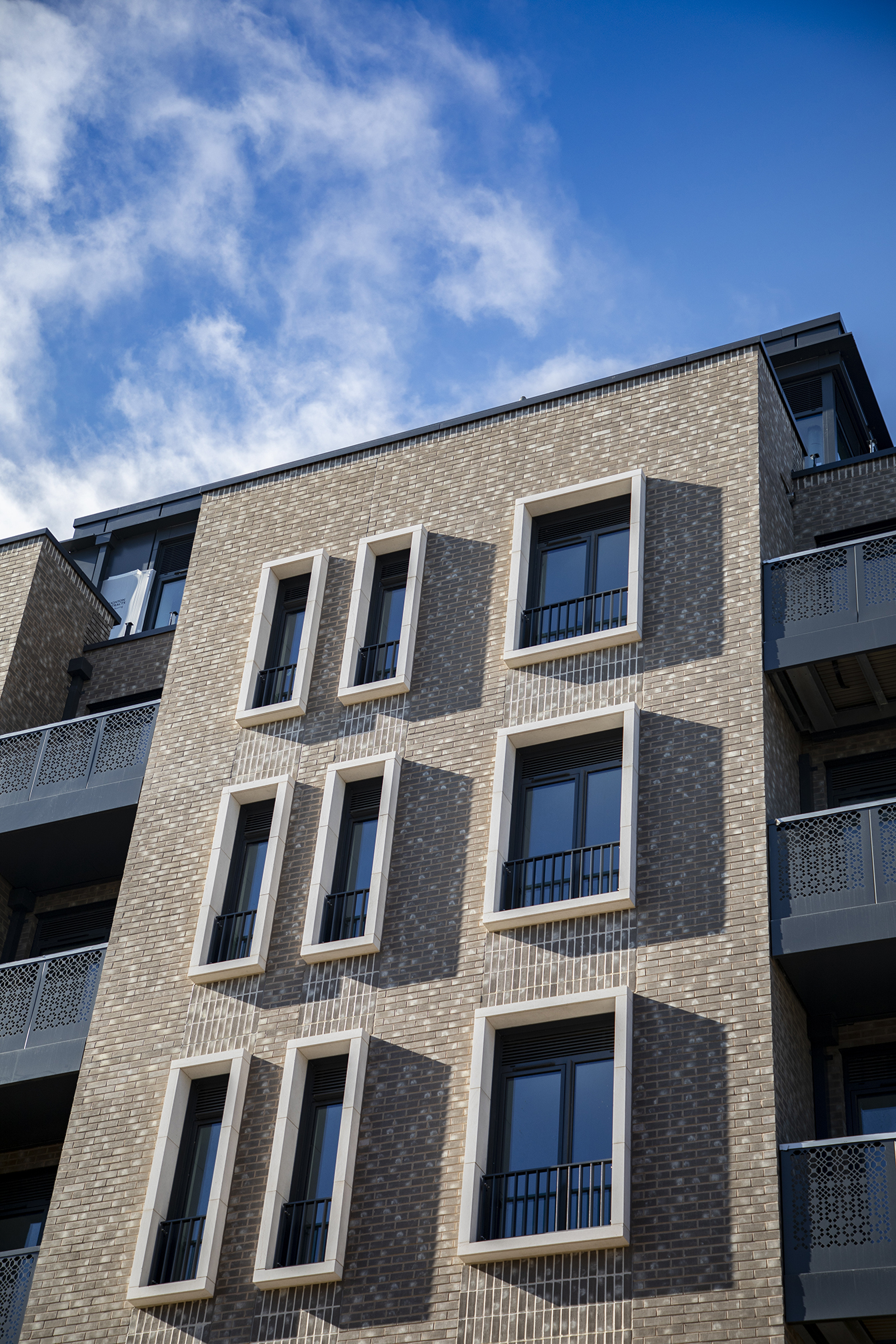

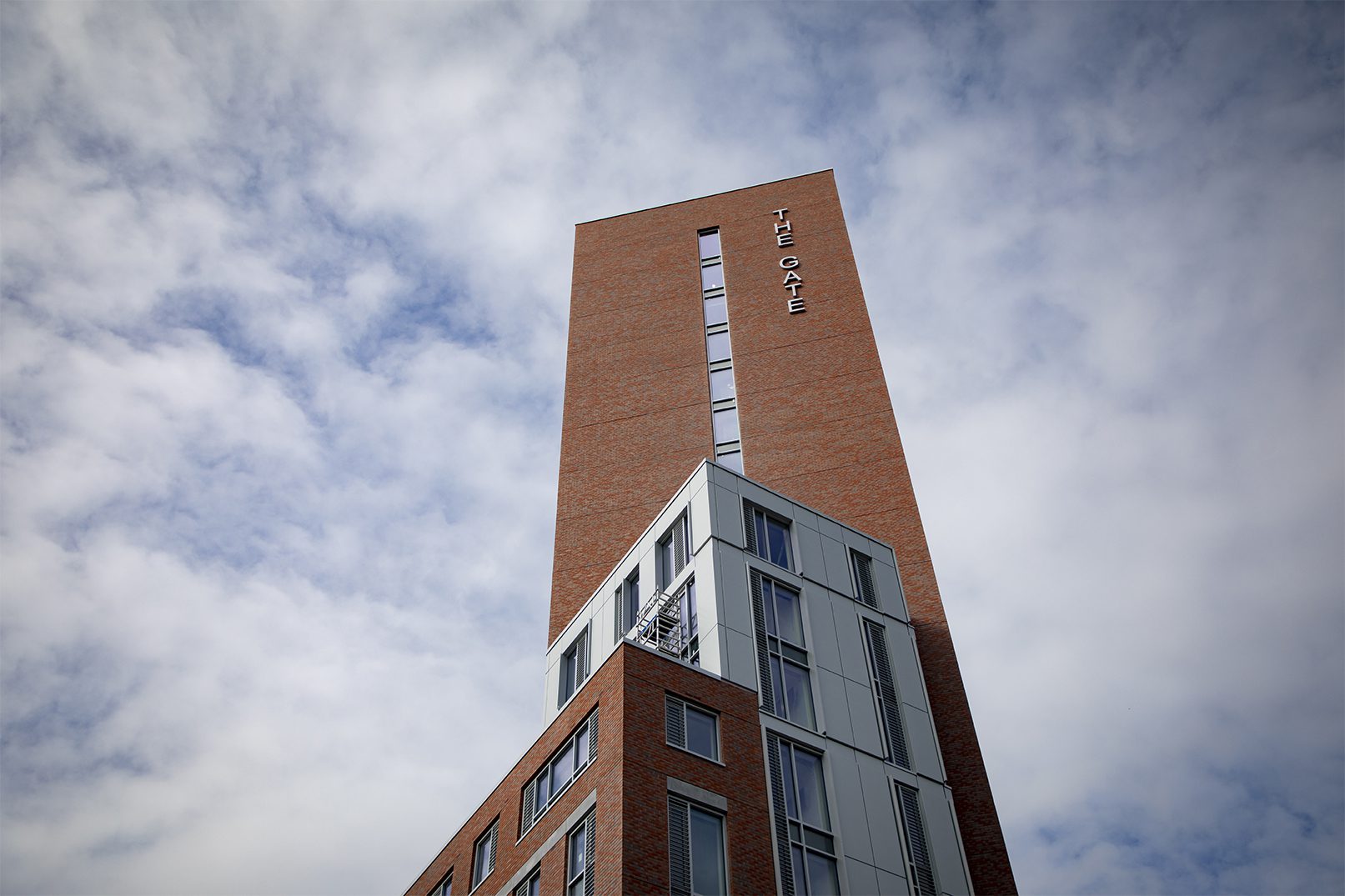

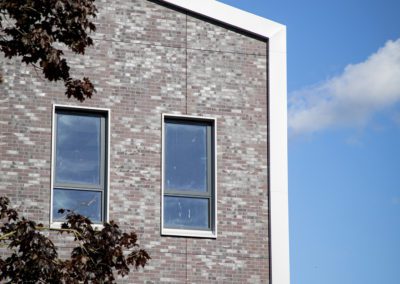

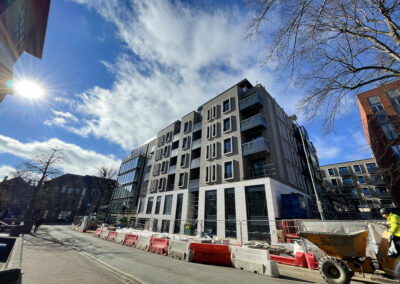

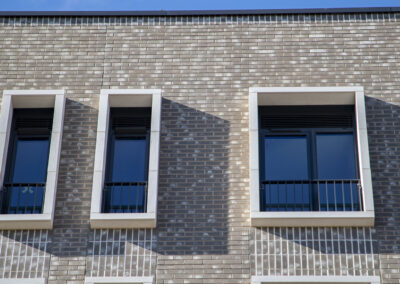

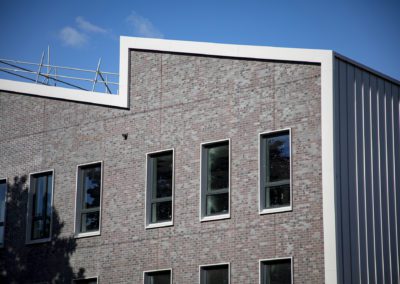

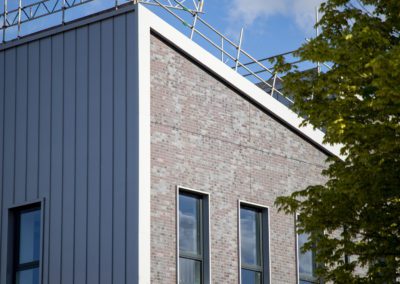

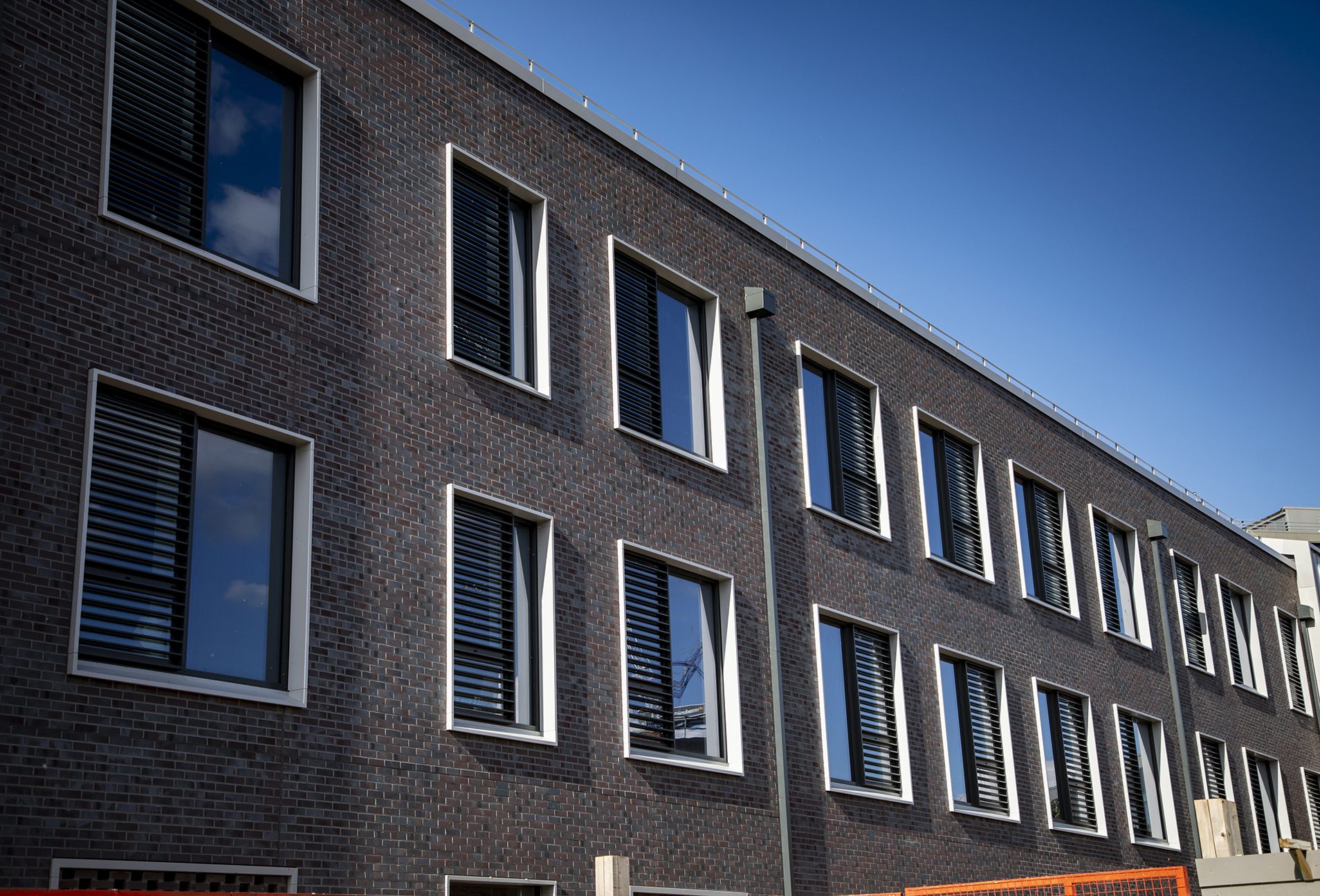

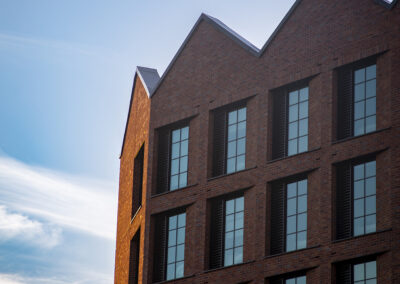

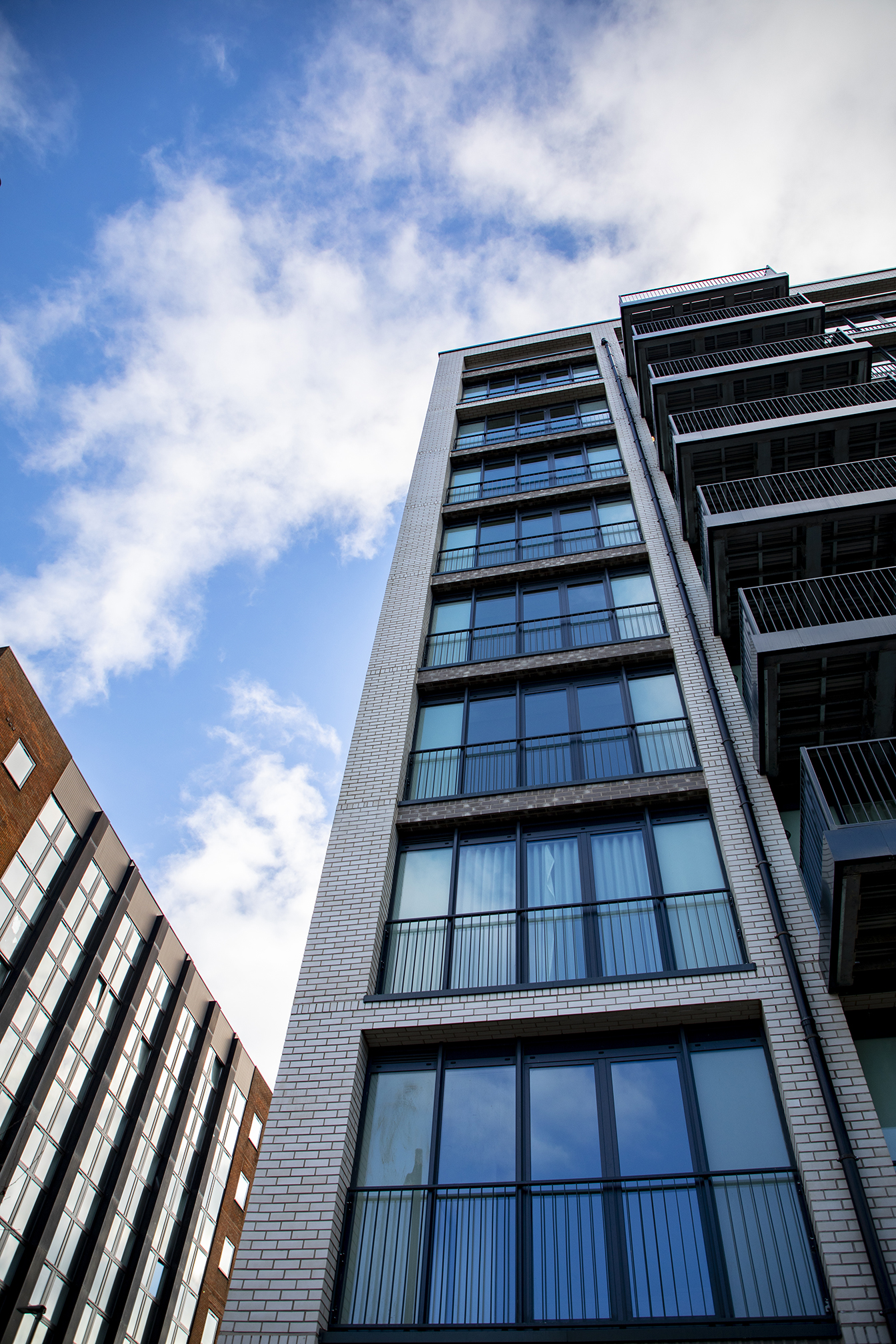

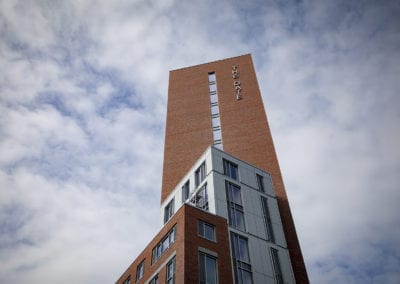

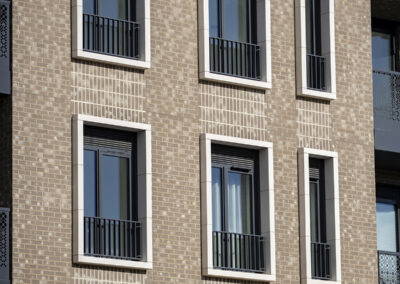

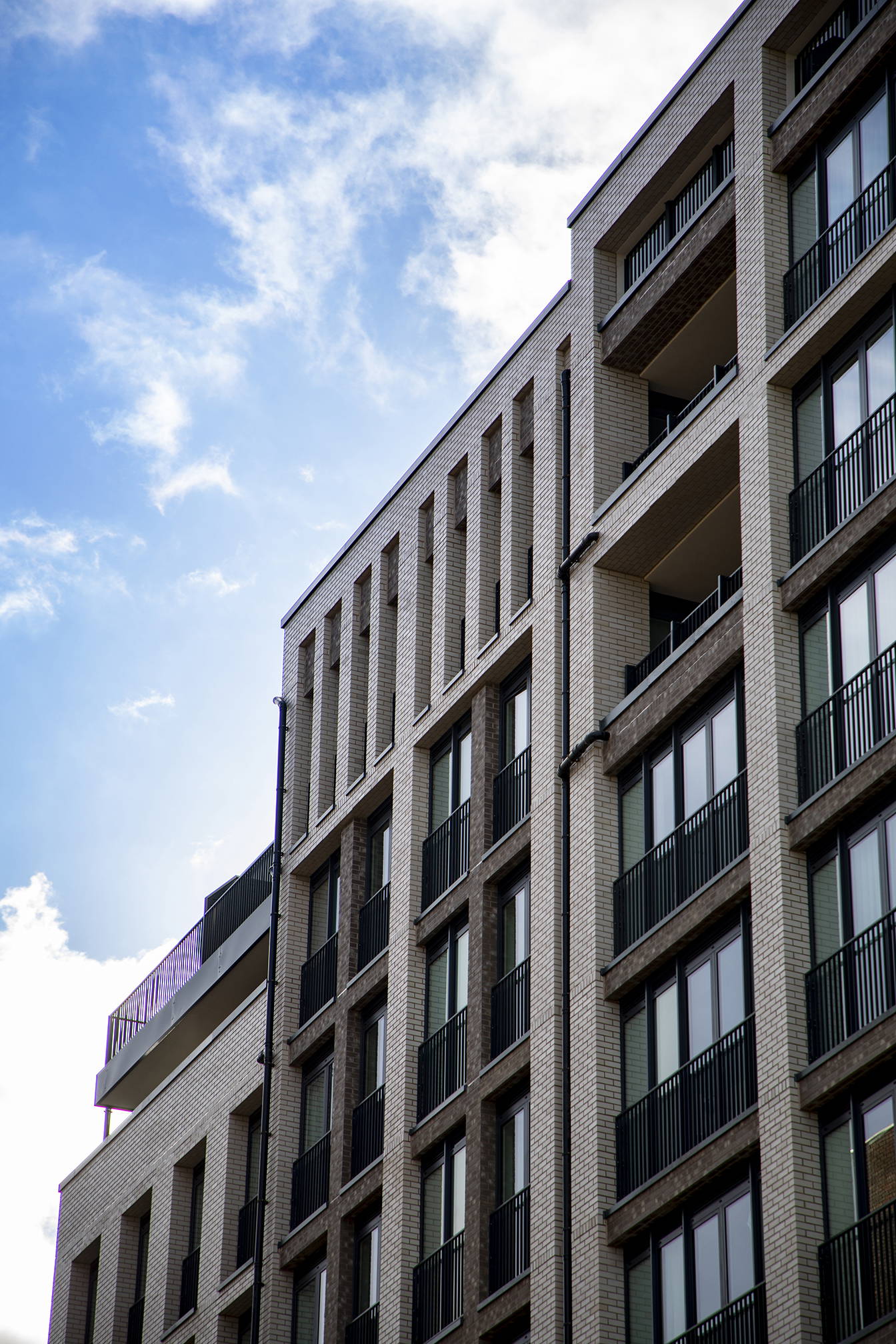

Gallery
