Spandrel Panel

Spandrel panels are a key consideration in curtain wall facades. They are installed in the gap between the vision areas of windows, ensuring aesthetic consistency from the outside and concealing the floor slabs, structural columns and shear walls within.

As part of the external wall system, spandrel panels must play an important role in meeting requirements for thermal efficiency, water control and fire safety.

Key Features

Non-Combustible

Non-Combustible



Cost effective

Cost effective



textures and colours icon

Wide range of textures and colours



Fast Track construction

Fast Track construction



mechanical equipment icon

Can be installed from mechanical access equipment



Lightweight

Lightweight



Speedpanel A2 Range

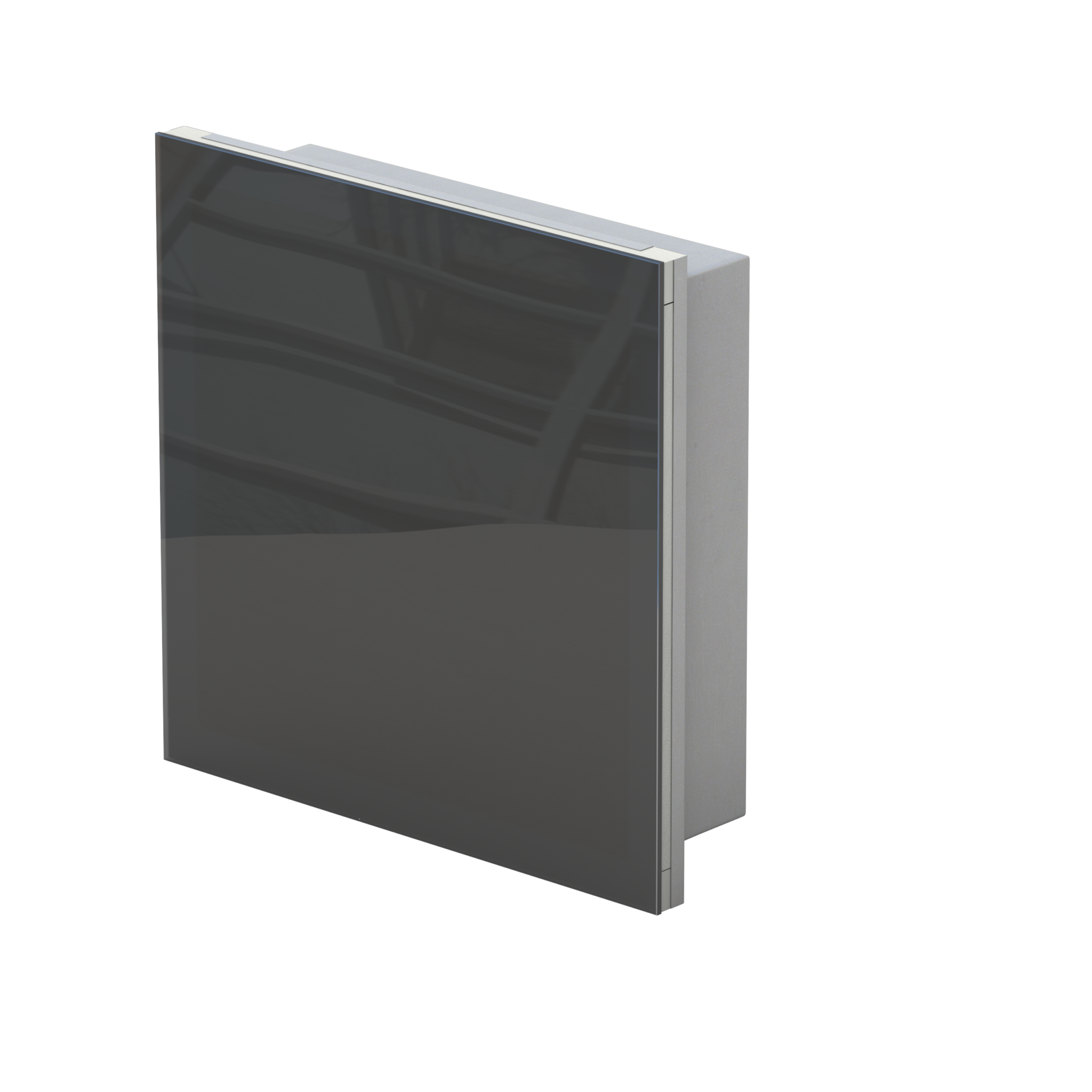

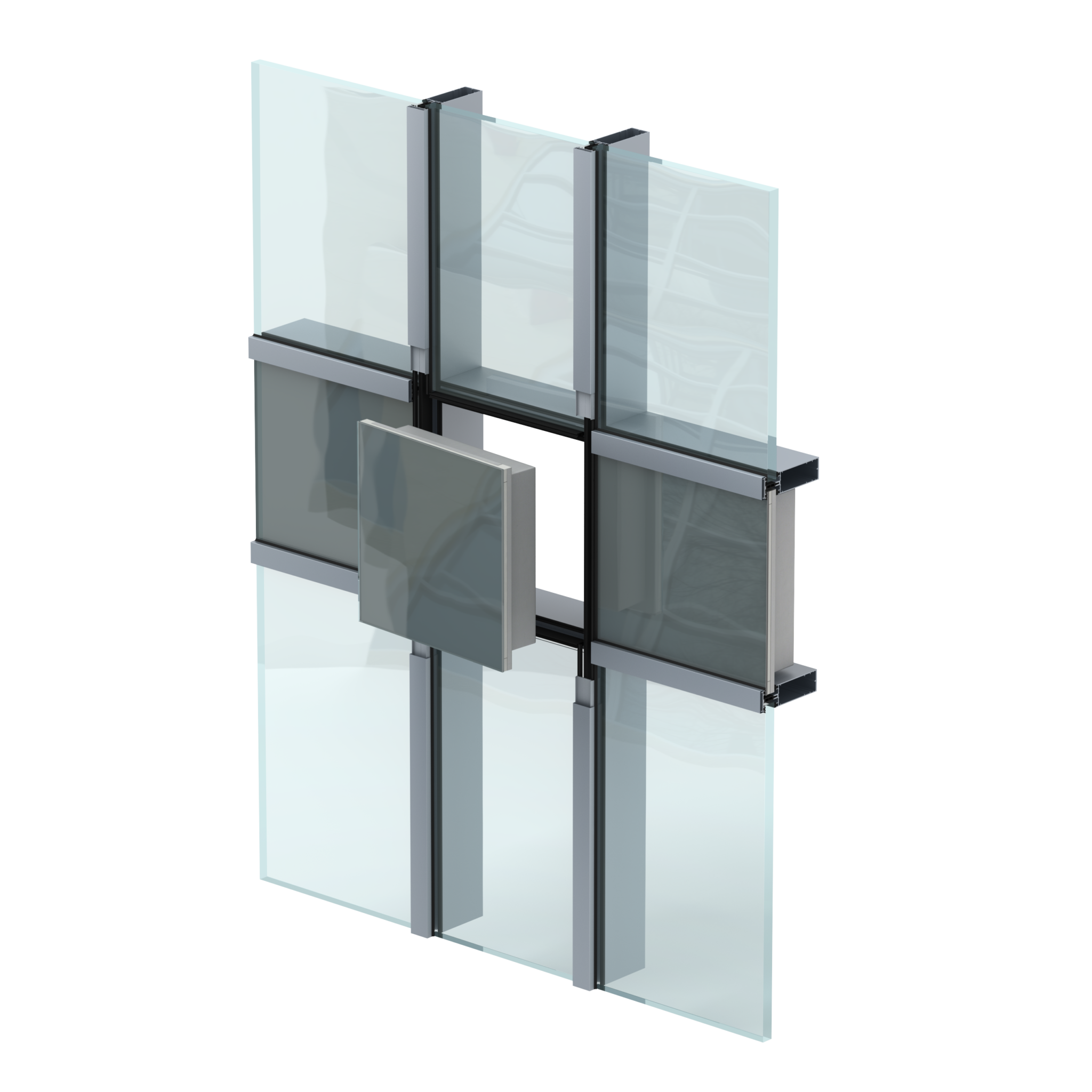

Speedpanel A2® Glass

The Speedpanel A2® range offers composite spandrel panels designed to be compatible with most curtain walling systems. Suitable for both new build and refurb projects, the range is readily available in standard sizes and colours. Requiring no assembly on-site, they offer consistent quality, every time.

Speedpanel A2® Glass comes prefinished with a ceramic-coated glass face – designed to be simply glazed-in to curtain walling systems. It achieves a whole panel fire classification of A2-s1,d0 in accordance with EN 13501-1:2018, and is tested in accordance with the TN 75 Hard Body Impact Test. The glass face features a patent-pending* glass retention system that prevents glass fragments from falling away upon impact, protecting those around in the event of damage.

The product has up to a 40-year life expectancy when fitted in a drained and ventilated curtain walling system that has been correctly specified, tested and installed.

*UK Patent Application No. 2201665.3


Speedpanel A2® Glass

Fire Rating A2-s1,d0 – WF 510564
Safety Tested in accordance with TN 75 Hard Body Impact Test
Core A1 non-combustible mineral wool
Mesh Safety Mesh
Face Glass (6mm Heat Soak Tested, Toughened)
Edging A1 Hard Edge
Tray (Internal) Coated Steel
Overall Size Up to 1200 x 3000, Landscape or Portrait
Rebate Depth 25mm or 50mm
Glazing Thickness 28mm to 48mm
Overall Panel Depth 31mm to 157mm
Colours All colours in the grey scale from black to white. Other colours may be available on request with additional fire certification testing.
End of Life All materials used in the panel, apart from adhesives and coatings, are recyclable

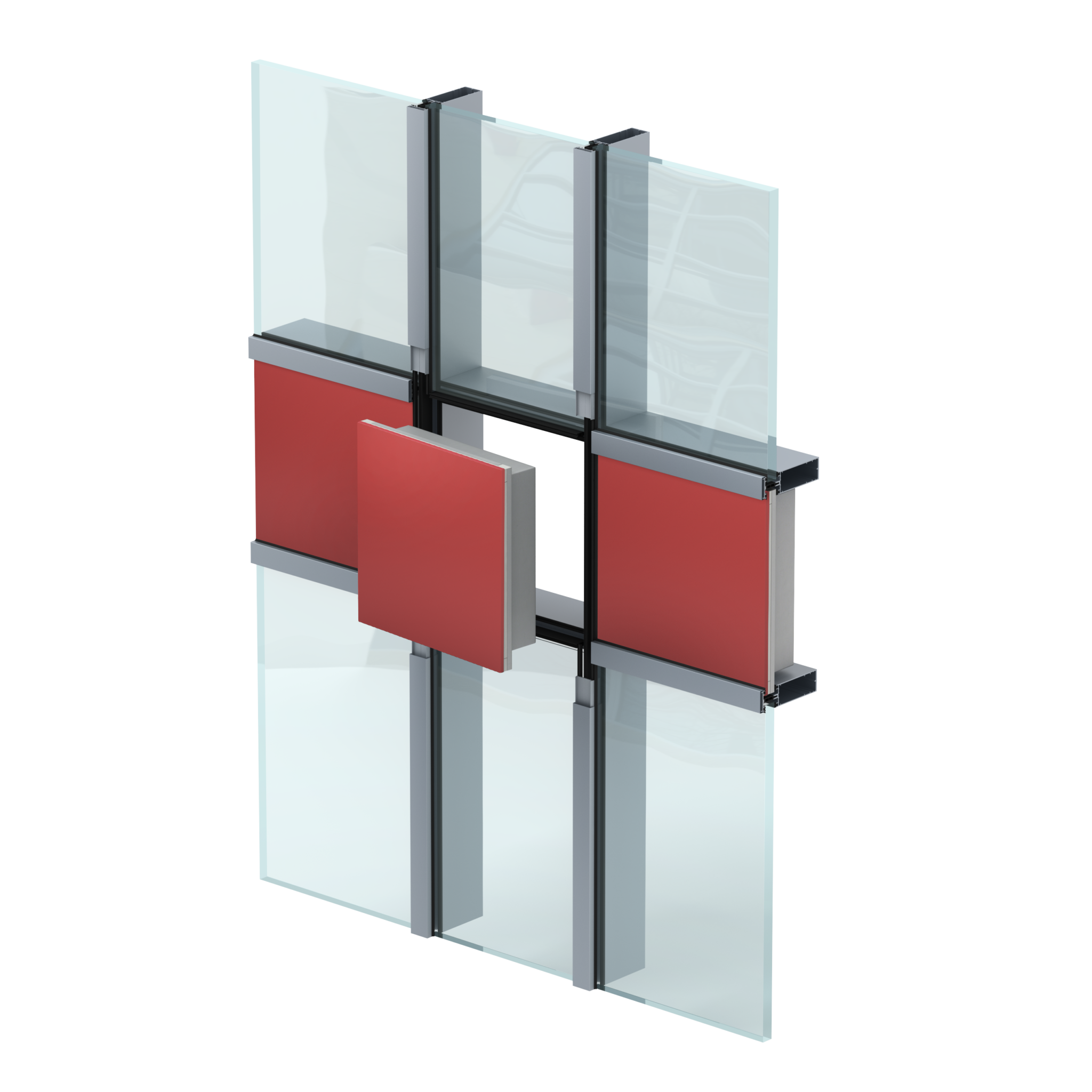

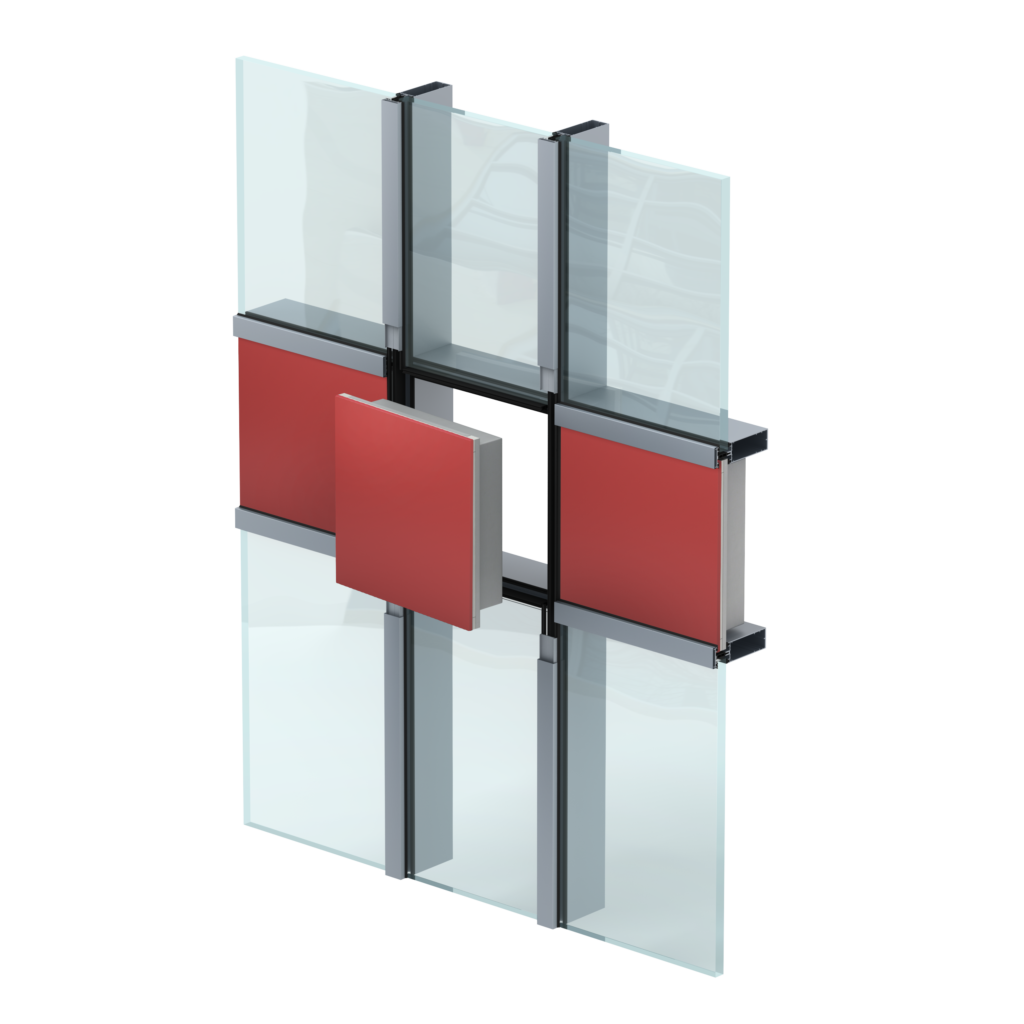

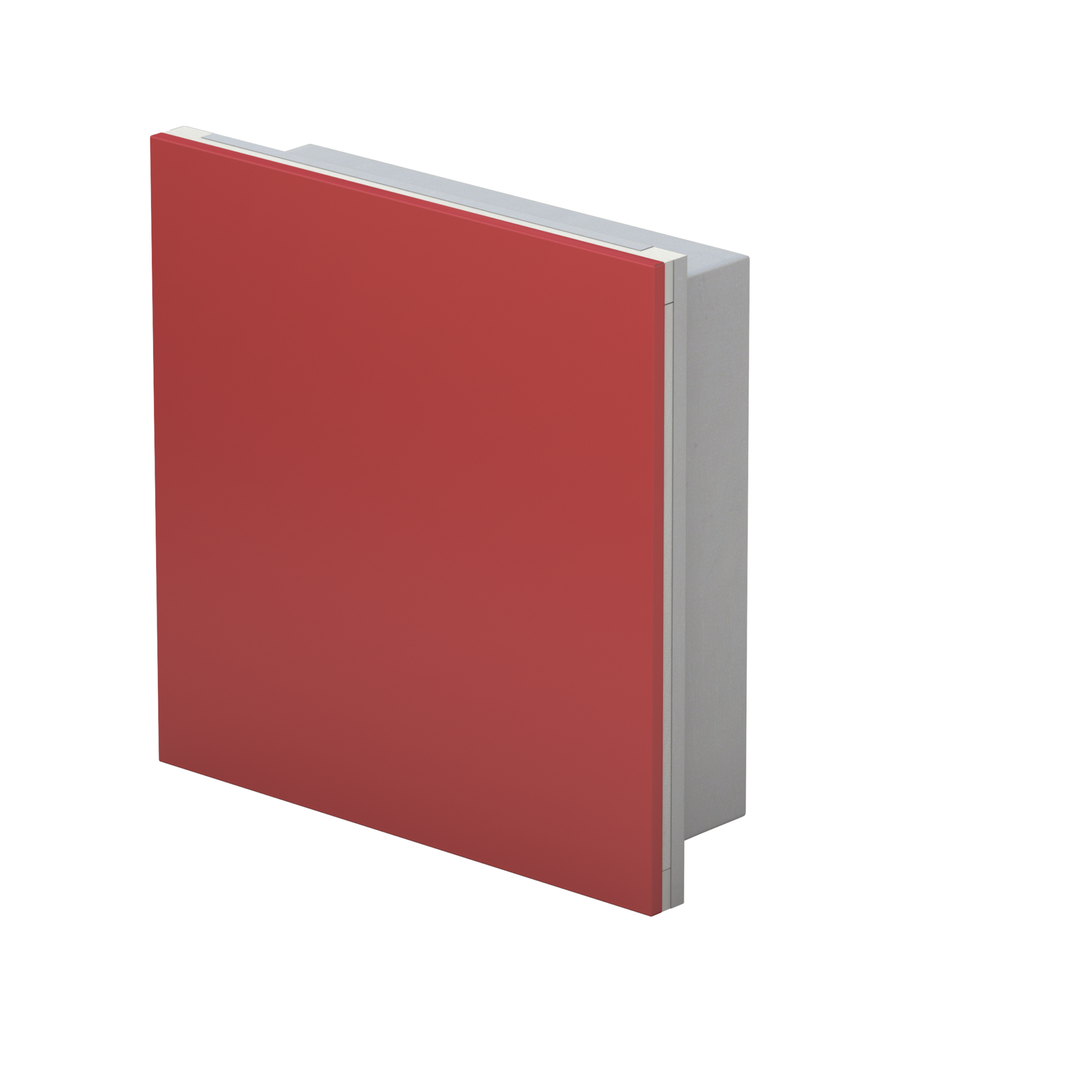

Speedpanel A2® Aluminium

The Speedpanel A2® range offers composite spandrel panels designed to be compatible with most curtain walling systems. Suitable for both new build and refurb projects, the range is readily available in standard sizes and colours. Requiring no assembly on-site, they offer consistent quality, every time.

Speedpanel A2® Aluminium is available in a wide range of colours to help bring projects to life. In addition to being easy to install, the product also provides high levels of fire and thermal performance, achieving a whole panel fire classification of A2-s1,d0 in accordance with EN 13501-1:2018, and typical U-values of between 0.26-0.38 W/m2K.


Speedpanel A2® Aluminium

Fire Rating A2-s1,d0 – WF 518399
Core A1 non-combustible mineral wool
Face Aluminium (1.5mm / 2.0mm / 3.0mm)
Edging A1 Hard Edge
Tray (Internal) Coated Steel
Overall Size Up to 1200 x 3000, Landscape or Portrait
Rebate Depth 25mm or 50mm
Glazing Thickness 28mm to 48mm
Overall Panel Depth 28mm to 157mm
Colours PPC Std RAL Colours | Std Anodised Range
End of Life All materials used in the panel, apart from adhesives and coatings, are recyclable

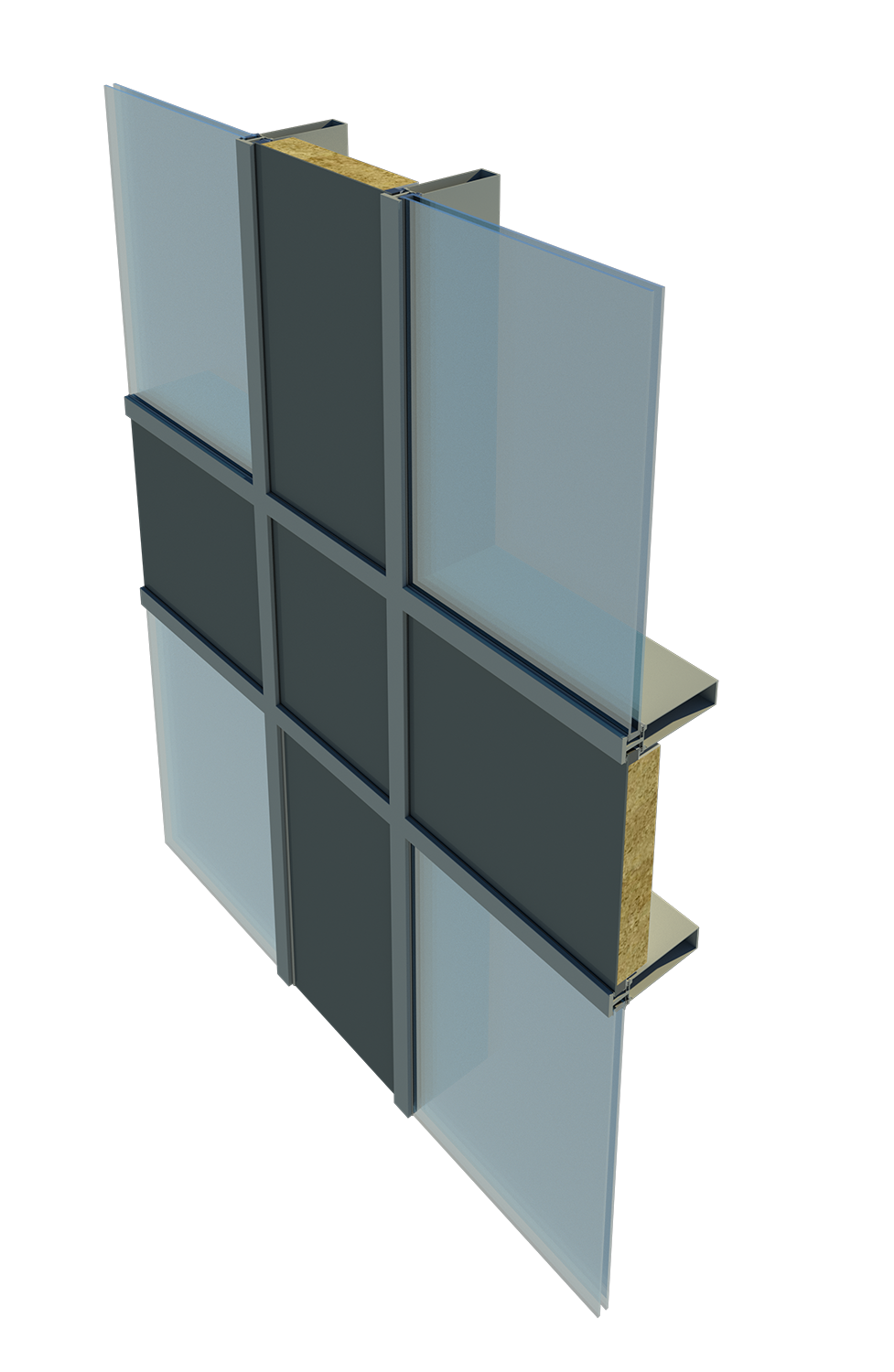

Speedpanel A2® Bespoke

The Speedpanel A2® range offers composite spandrel panels designed to be compatible with most curtain walling systems. Suitable for both new build and refurb projects, the range is readily available in standard sizes and colours. Requiring no assembly on-site, they offer consistent quality, every time.

However, we know that not all projects are the same. Whether they are for a new construction or a refurbishment, we offer bespoke design, testing and manufacture of Speedpanel A2® variants. From face materials to non-standard sizing, contact our team to learn how we can support your project.

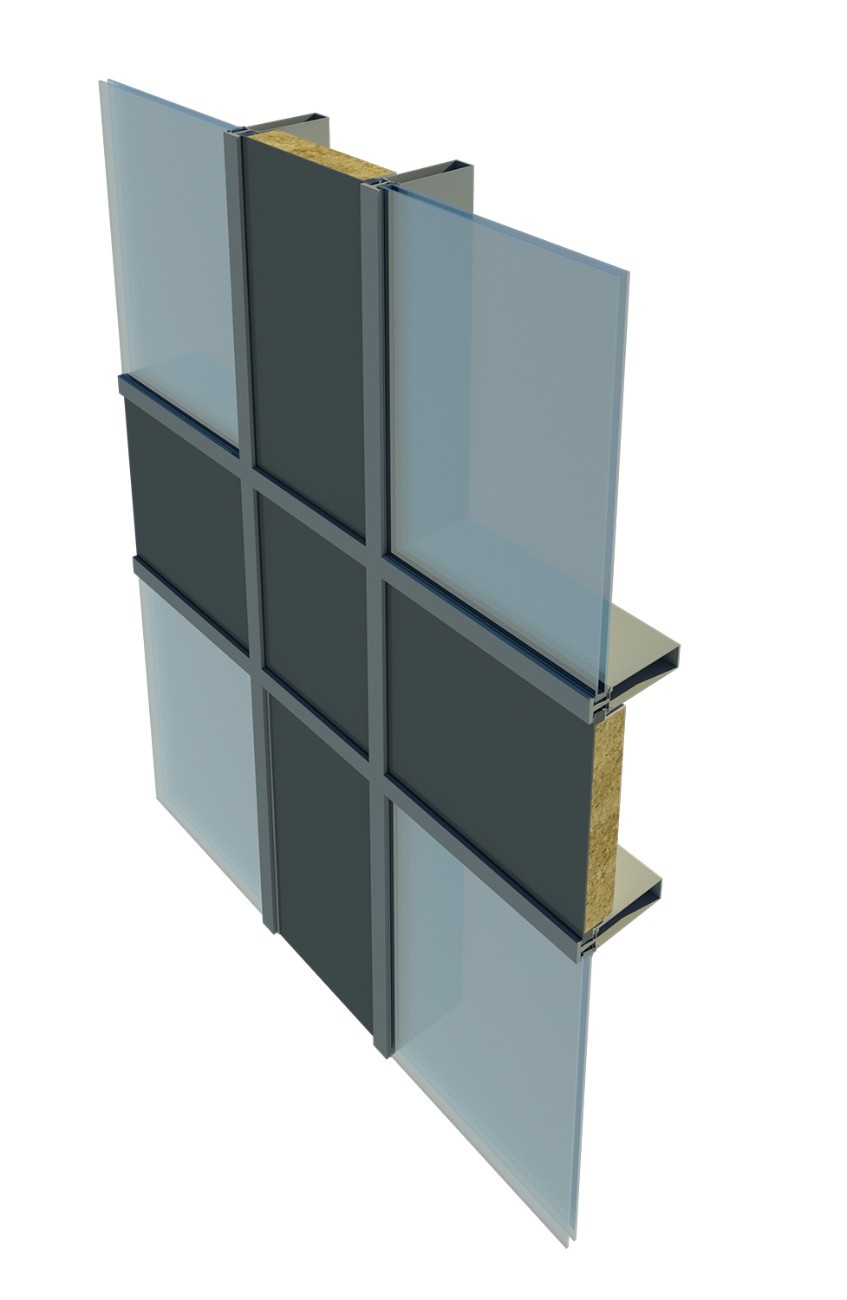

Genius A1 Spandrel

One of the latest innovative products available from RGB Facades. The Genius A1 Spandrel panel has been specially designed for use in a range of curtain wall or window systems. This robust product is fully non-combustible, lightweight and easy to install.

Example Properties
(based on Typical 28mm thickness)

Thermal – U-Value of 1.13 W/(m2K)
Weight – Circa 15kg/m2
Thickness – 28mm

Above properties will vary depending on required thickness.
