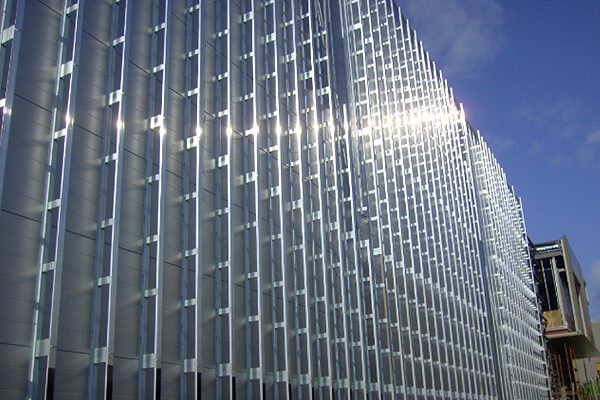

Framing

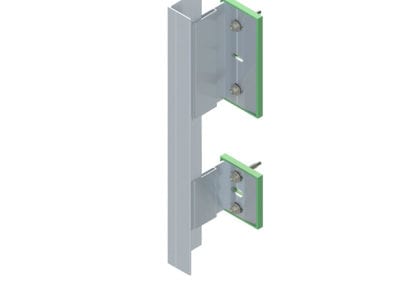

Aluminium brackets, rails and systems are predominately used for cladding applications.

The brackets and rails support the decorative cladding panels and create the cavity between the building substrate and façade panel required for insulation and for ventilation.

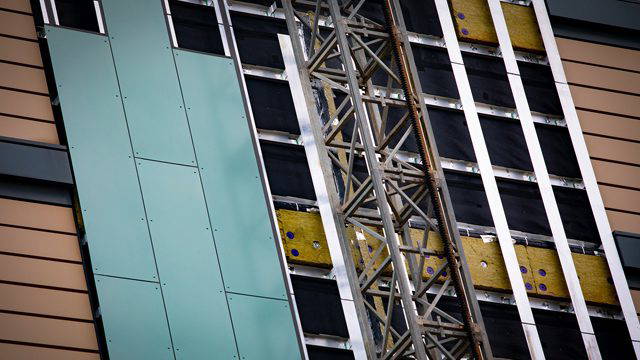

Aluminium framing are used for Rainscreen cladding systems and are appropriate for most types of decorative façade materials that utilise mechanical fix and structural adhesive techniques.

Key Features

Non-Combustible

Non-Combustible

CWCT testing

CWCT testing

Fast Track solution

Fast Track solution

Cost effective

Cost effective

Can be installed from mechanical access equipment

Can be installed from mechanical access equipment

Lightweight

Lightweight

Flexibility in design

Flexibility in design

Varied panel options

Varied material options

FastFrame

FastFrame

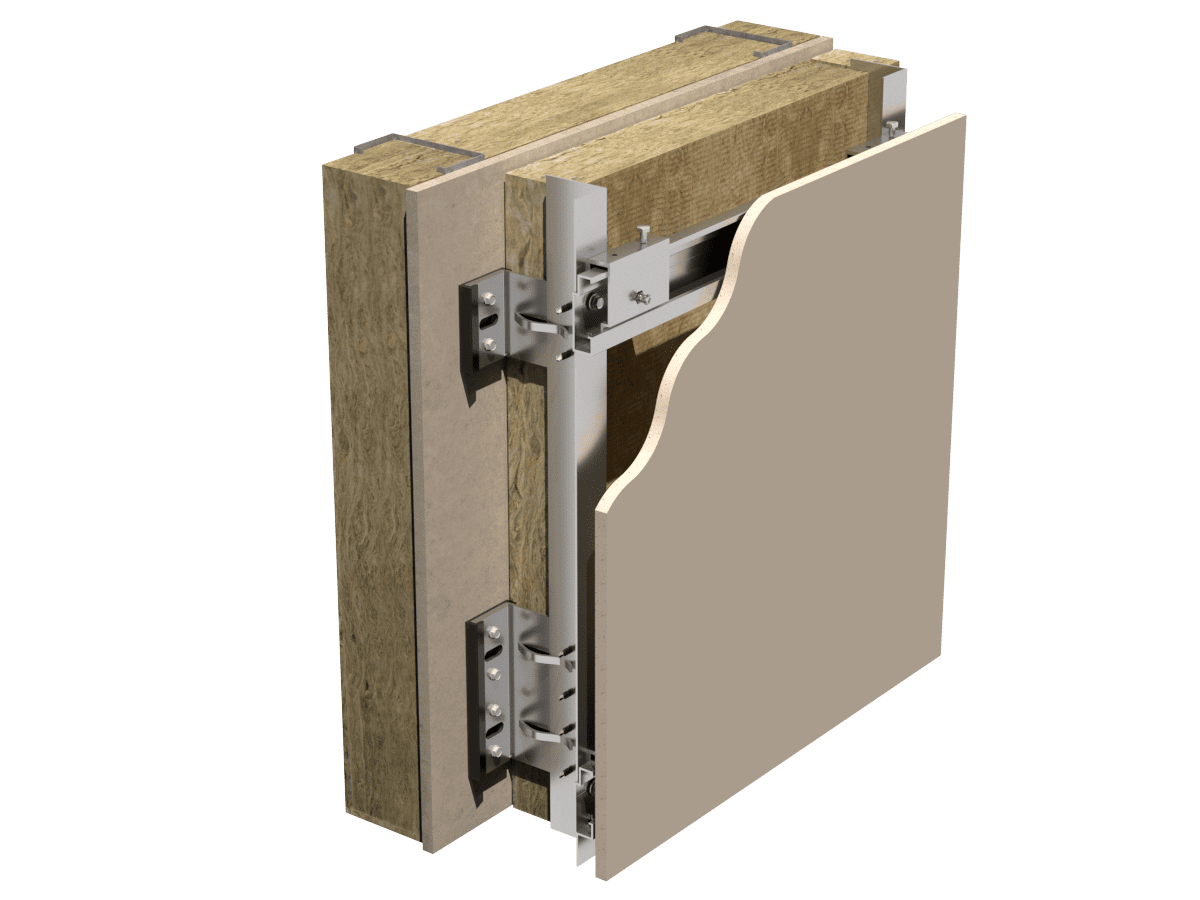

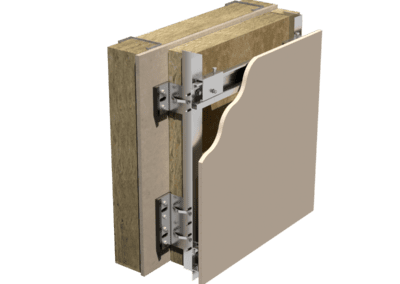

FastFrame is an adjustable cladding fixing system that suits most brands of exterior cladding panels. We can offer a technical service to calculate the safest yet most cost-effective bracket spacings to support your facade. Save time and money with FastFrame get in contact today. FastFrame

  • BBA approved
  • The FastFrame system presents the fastest, simplest and most cost-effective facade support solution on the market.
  • 2-3 days in-house calculations specific to every application.
  • The adjustable, universal bracket made from 5251 H22 grade aluminium comes complete with an isolation clip and is suitable for almost all building substrates.
  • The T & L rails are made from high specification 6063 T6 grade aluminium.
  • Compatible with various facade finishes, including spun rock, HPL, cement based sheets, ACM, render systems, timber & many more.
  • On-site pull out tests by trained technicians.
  • FastFrame is available from a UK distribution network and has available ex- stock for overnight delivery.
  • Fully backed by an independent structural engineer offering PI cover.
  • Suitable for marine environments.

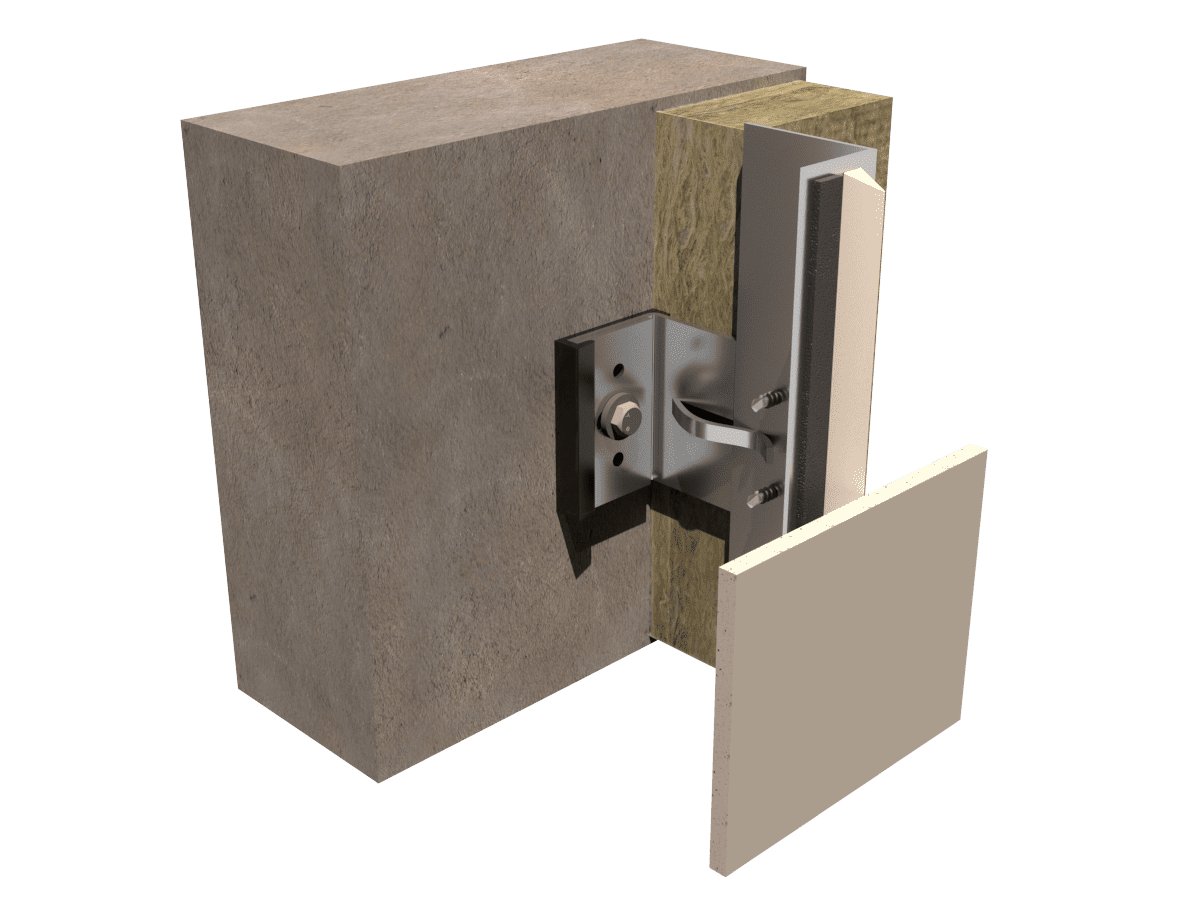

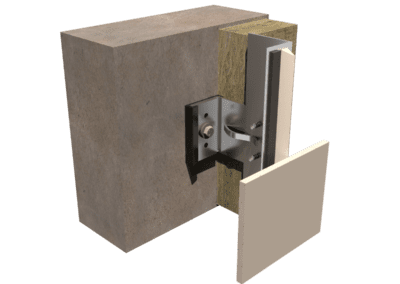

Secret Adhesive Fix

Secret adhesive fixing uses high strength bonding systems to fix the panels to a prepared aluminium rail.

Secret Adhesive Fix

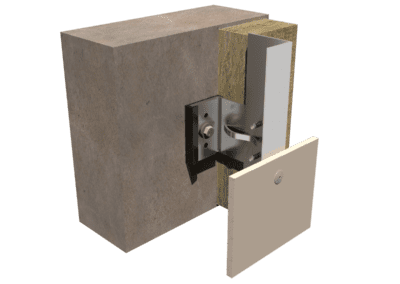

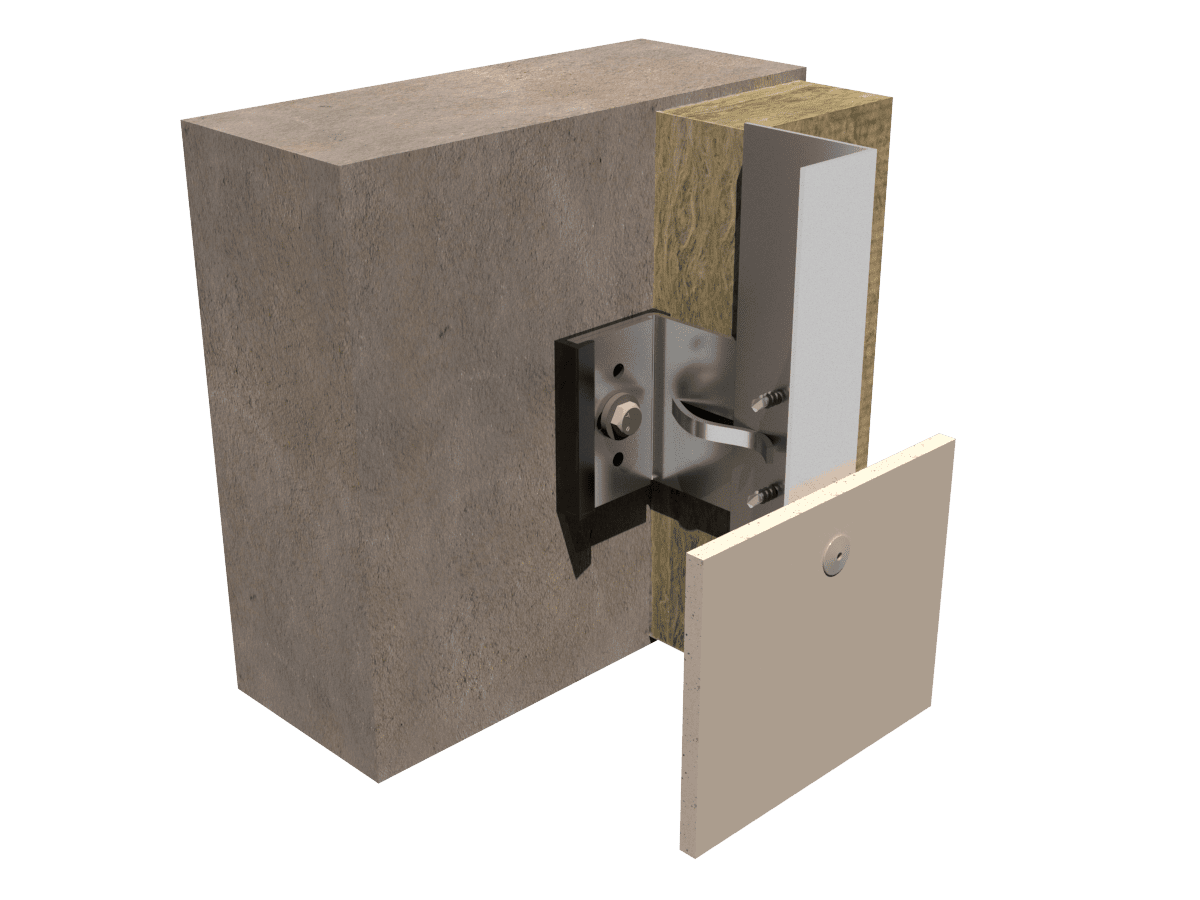

Rivet Face Fix

Panels are fixed to the vertical aluminium rails with powder coated blind rivets.

Rivet Face Fix

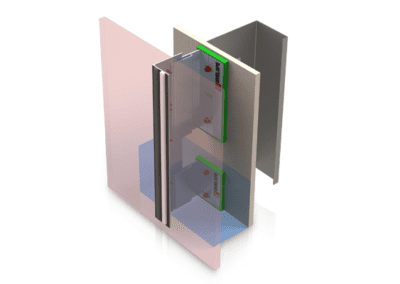

Mechanical Secret Fix

Mechanical secret fix uses carrier brackets fixed to the rear of the panel with specialised fixings that then hang on to a horizontal carrier rail.

Mechanical Secret Fix

AxiAL Support Range

AxiAL Support Range

the AxiAL range of rainscreen support systems and lightweight framing components has been developed by industry experts to offer a diverse selection of generic framing options that can accommodate a wide spectrum of materials and design requirements. Providing both cost-effective and flexible solutions, and benefiting from the safety of mechanical fixing methodology, there is an AxiAL system to suit the needs of most new build and refurbishment projects – for buildings that are built to last. Comprised of an extensive standard range of pre-assembled brackets & rails, available in both aluminium and stainless-steel options, AxiAL components and systems are manufactured from the highest quality metal alloys, ensuring optimum structural integrity and longevity, striving to meet and exceed the evolving performance requirements of the cladding and façade industry.

Cladding Materials AxiAL Range Supports

  • High Pressure Laminates
  • Rockpanel
  • Fibre Cement
  • ACM
  • Aluminium
  • Stainless Steel
  • Timber Laminates
  • Brick Slip
  • Weatherboarding
  • Render
  • Terracotta
  • Metals
  • Zinc / Copper

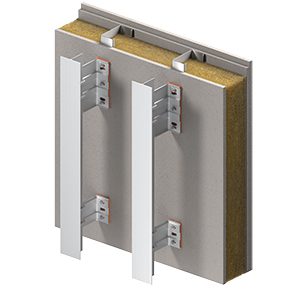

AX1

Aluminium support system suitable for mechanical face fixing of cladding elements by means of rivet or screw, in vertical application.

ax1

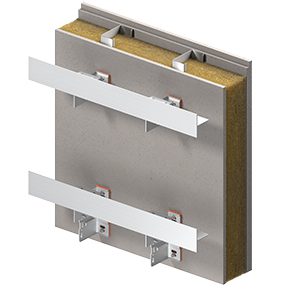

AX2

Aluminium support system suitable for mechanical face fixing of cladding elements by means of rivet or screw, in horizontal application.

ax2

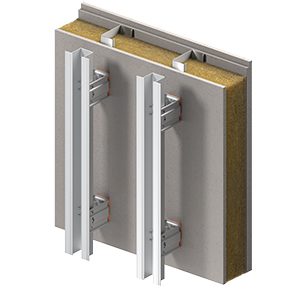

AX3

Aluminium support system suitable for mechanical concealed fixing of horizontal and vertical application cassette panels.

ax3

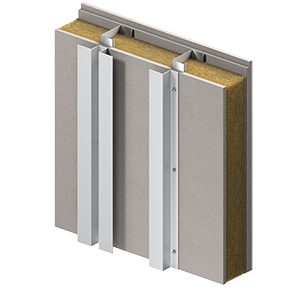

AX4

Aluminium support system suitable for face-fix rainscreen with a shallow cladding zone and no adjustability requirement in the cladding zone.

ax4

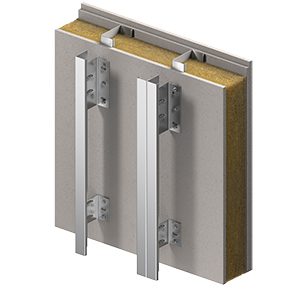

AXR1

Stainless steel support system suitable for mechanical face fixing of cladding elements by means of rivet or screw, in vertical applications.

axR1

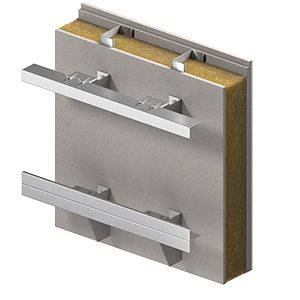

AXR2

Stainless steel system suitable for mechanical face fixing of cladding elements by means of rivet or screw, in horizontal application.

axR2

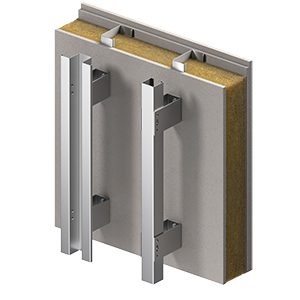

AXR3

Stainless steel support system suitable for mechanical concealed fixing of horizontal and vertical application cassette panels.

axr3

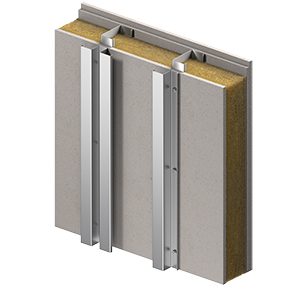

AXR4

Stainless steel support system suitable for face-fix rainscreen with a shallow cladding zone and no adjustability requirement in the cladding zone.

axR4

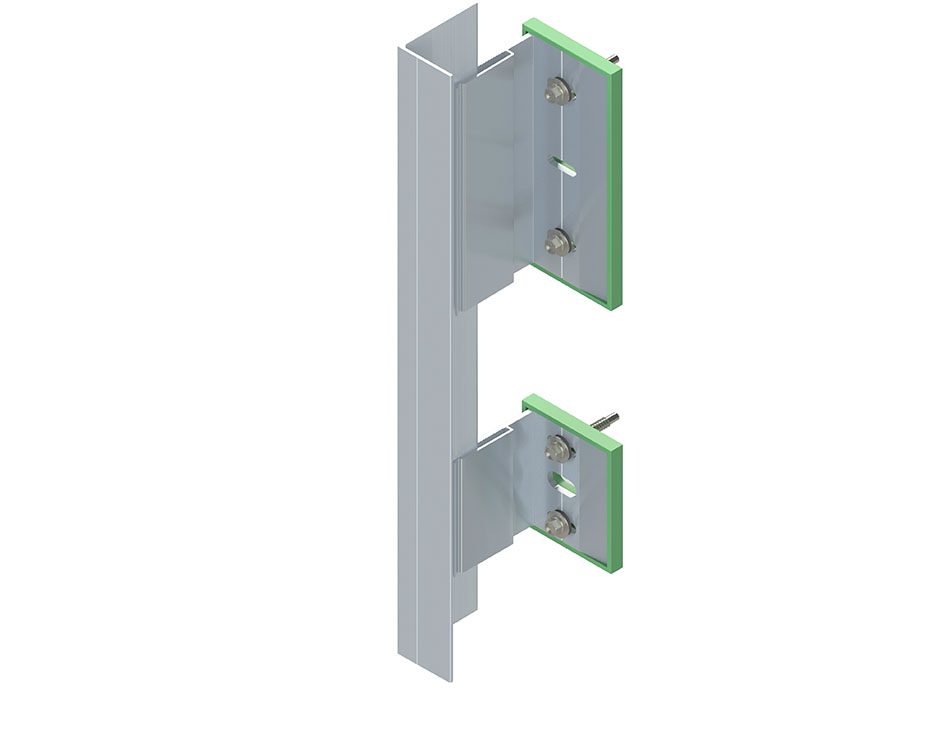

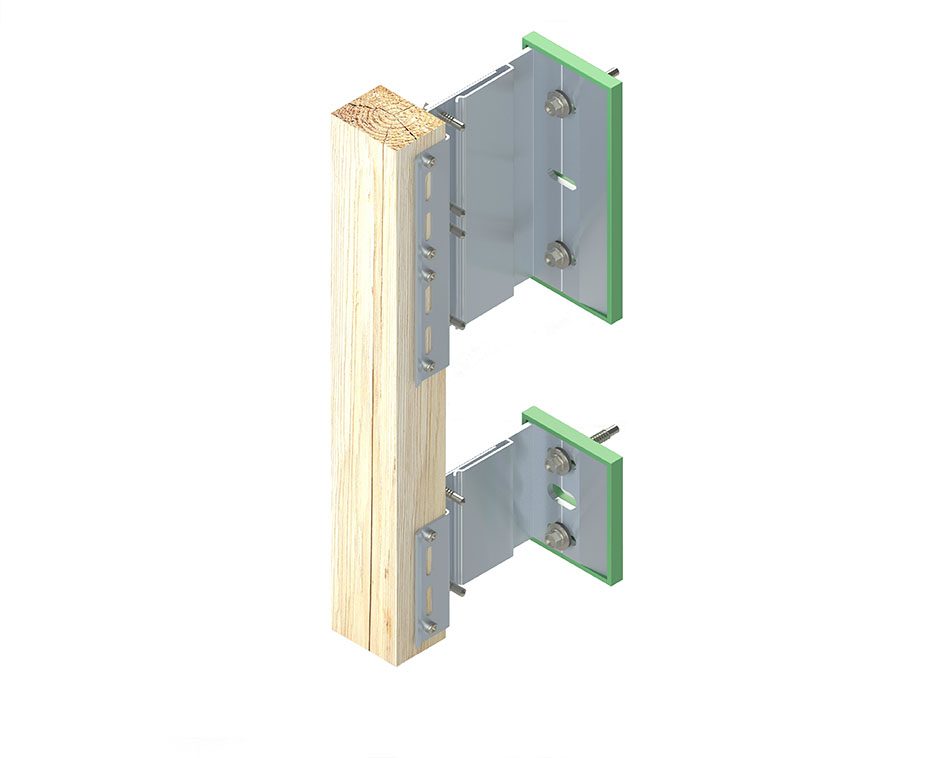

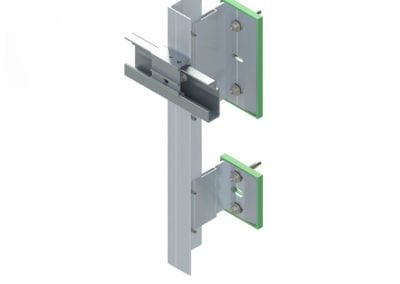

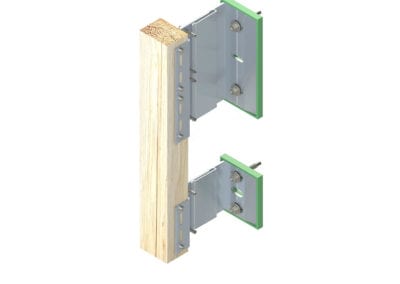

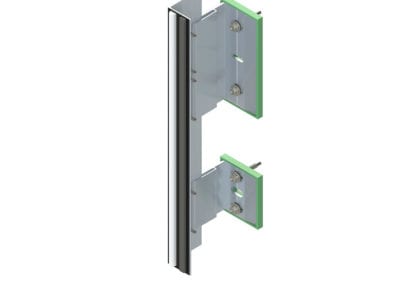

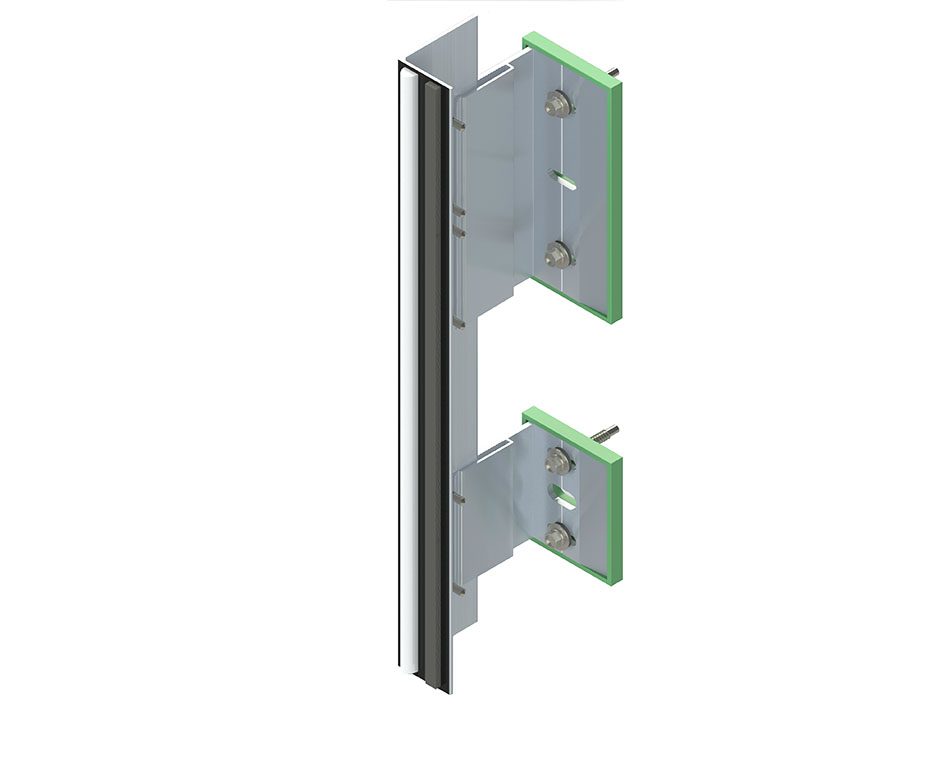

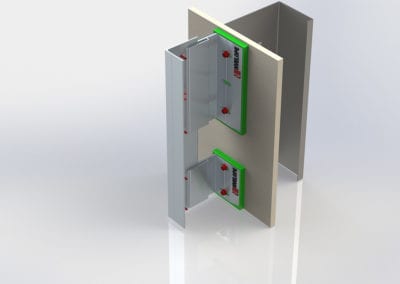

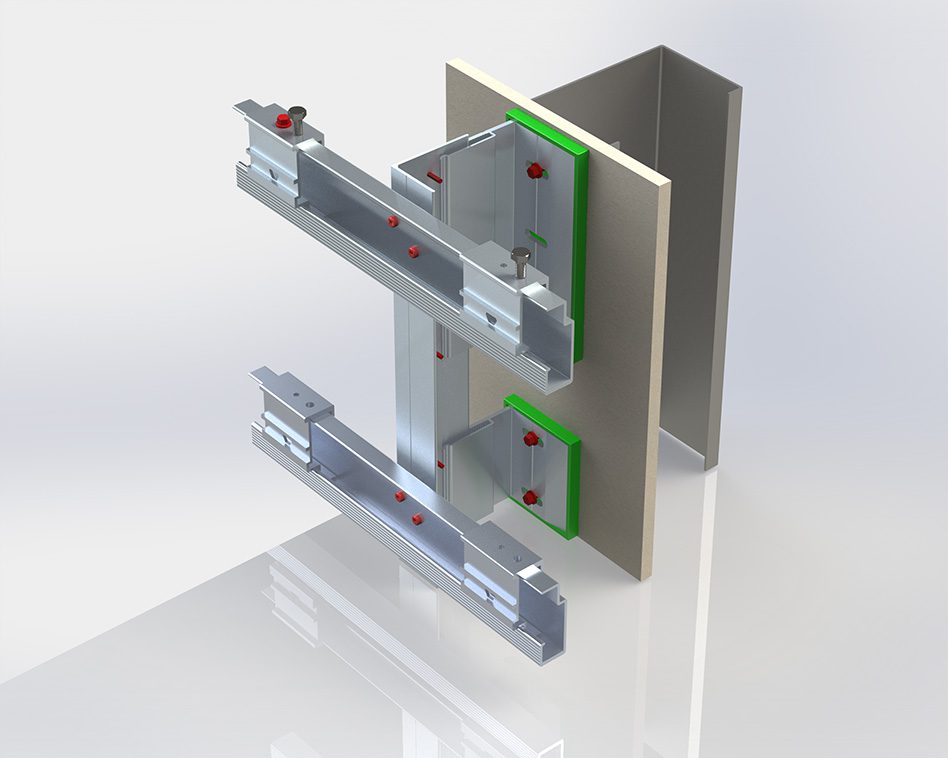

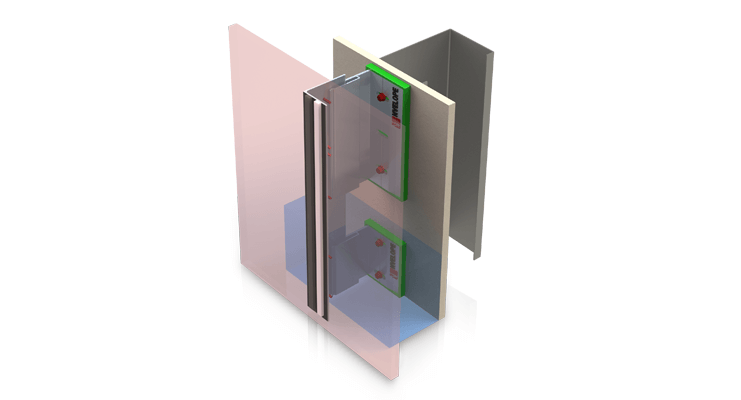

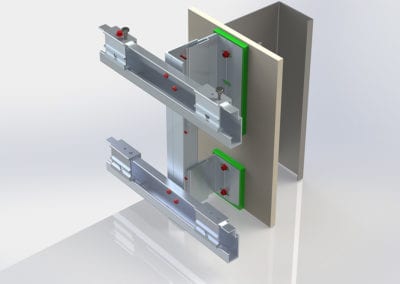

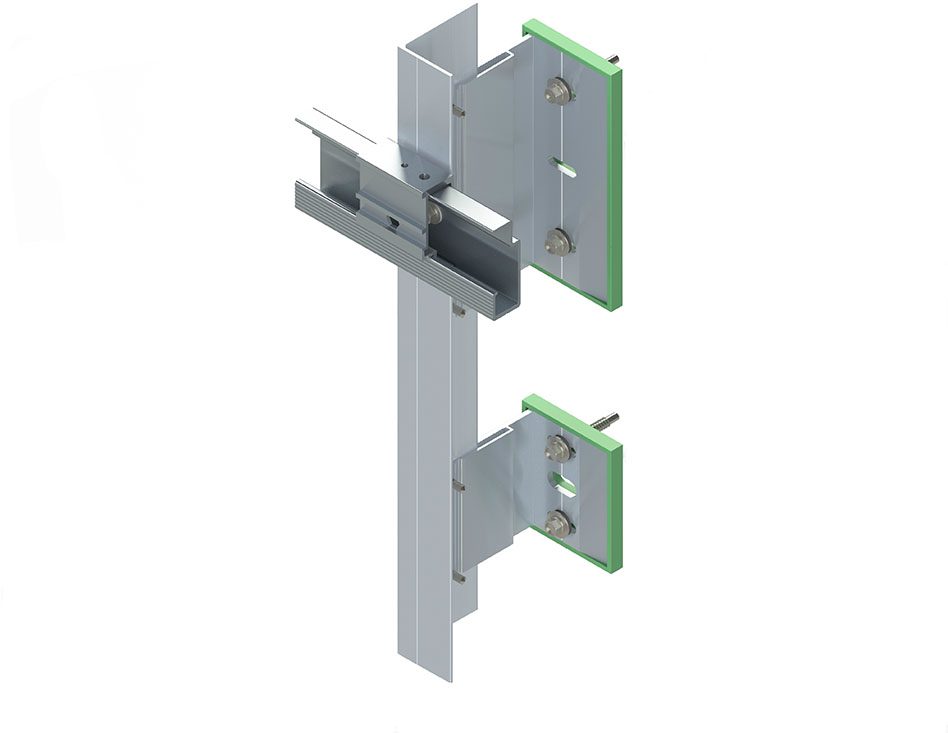

Nvelope

Nvelope

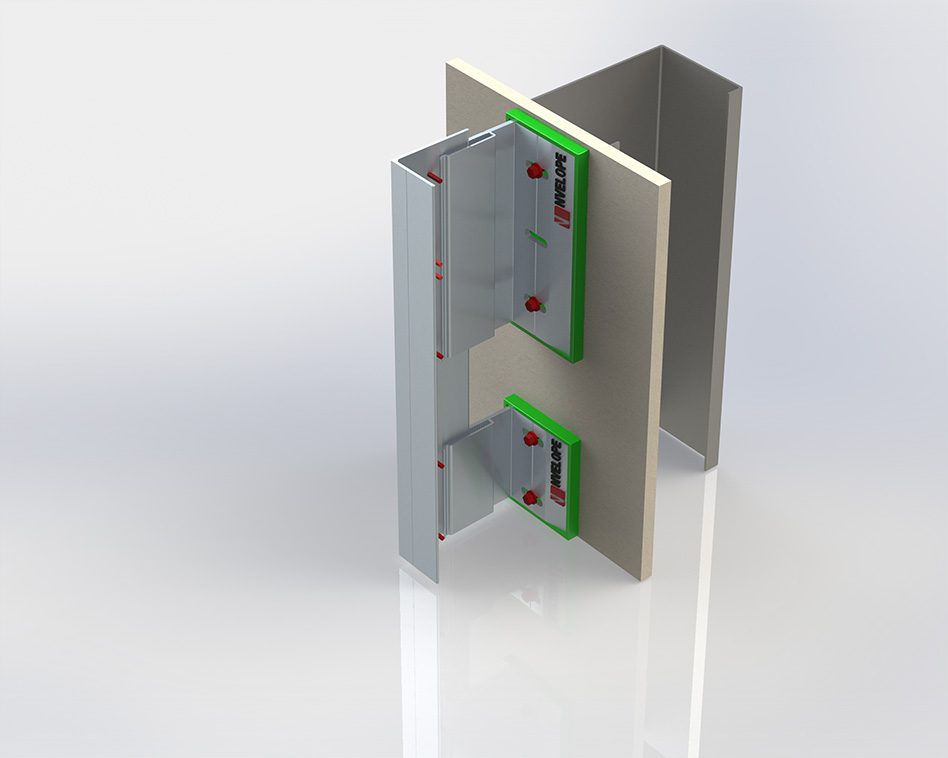

Nvelope produce Rainscreen Support Systems that are safe, economic and effective, delivering pragmatic solutions in façade and rainscreen façade support systems, since the 1980s.

Benefits

  • High Pressure Laminates
  • Rockpanel
  • Fibre Cement
  • ACM
  • Aluminium
  • Stainless Steel
  • Timber Laminates
  • Brick Slip
  • Weatherboarding
  • Render
  • Terracotta
  • Metals
  • Zinc / Copper
