Brick Cladding

The traditional brick appearance is still a very popular choice within the market place and in some occasions a requirement in the planning process. This however can be a very time consuming and labour intensive process.

RGB Facades offer a wide range of brick cladding systems which gives the appearance of traditional brickwork with a fast track, lightweight cost effective installation.

With an extensive range of colours and textured brick tiles we can offer the appearance that the client requires for their project. Please find below the various systems on offer:

Benefits in Construction

  • Lighter
  • Faster
  • Durable
  • Predictable
  • Cost savings
  • Maximise space

We highly recommend products that RGB are associated with to our clients as we know the ordering process and delivery will be hassle free, and the quality will be second to none.

Ruth Parnell

Cubic Facades

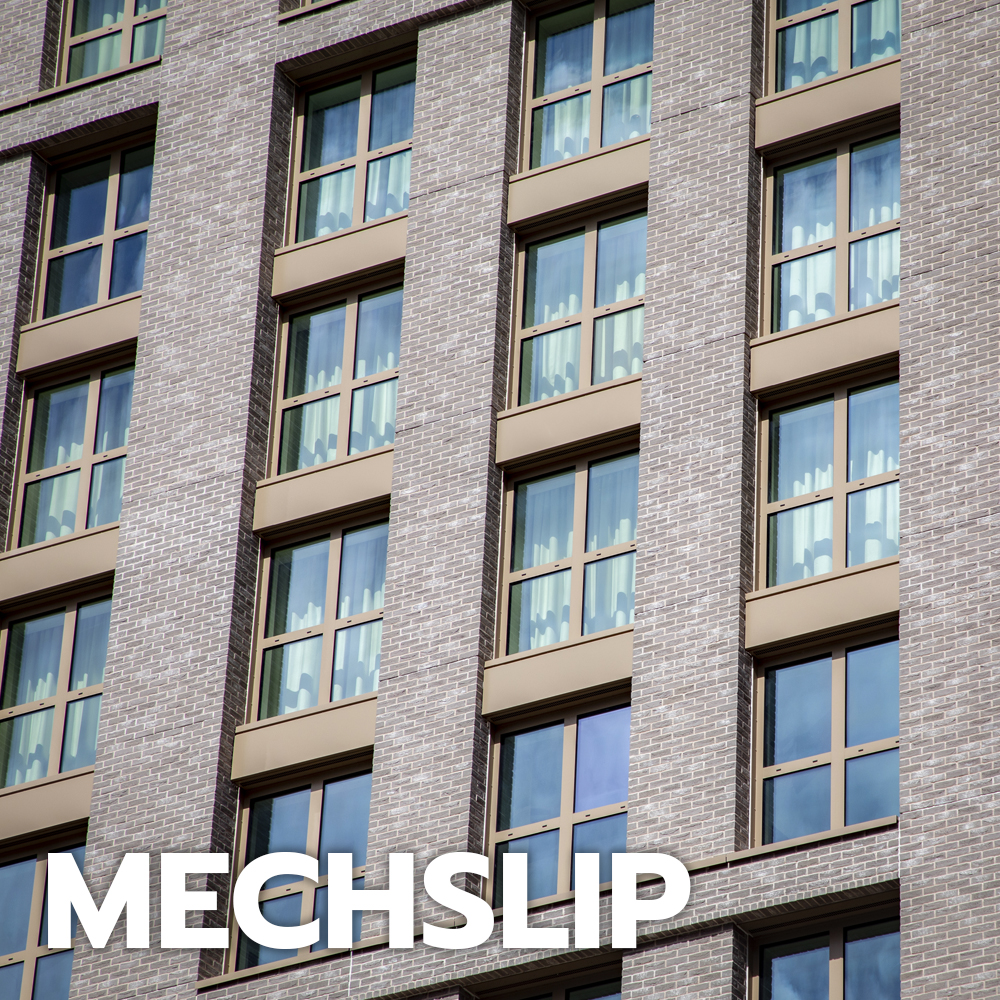

Mech Slip System

Mechslip

Mechslip enables architects and building specifiers to use authentic brick with the inspired versatility of a fully mechanically fixed cladding system, with a wide selection of brick types and finishes.

    • Lightweight brick cladding system
    • Fully mechanically secured brick slips
    • Non-combustible system components
    • Versatile brick detailing options
    • Can be installed in all weather conditions

Mechslip Brick Slips

  • Engineered grooves fabricated into 28mm thick brick slips
  • Brick spacer supplied to create vertical mortar joints
  • Rated F2 ‘Severe Exposure’ Frost Resistance
  • UK & European sizes as well as Linear and special shape bricks
  • Brick specials including one-piece corners
  • Full Ibstock range of 300+ brick finishes

Mortar

  • Mortar is applied by gun-injection – known as pointing
  • Parex Historic Lime Mortar should be used in line with system specification
  • 28 days full cure period
  • Network of Parex Approved applicators
  • Parex training courses available

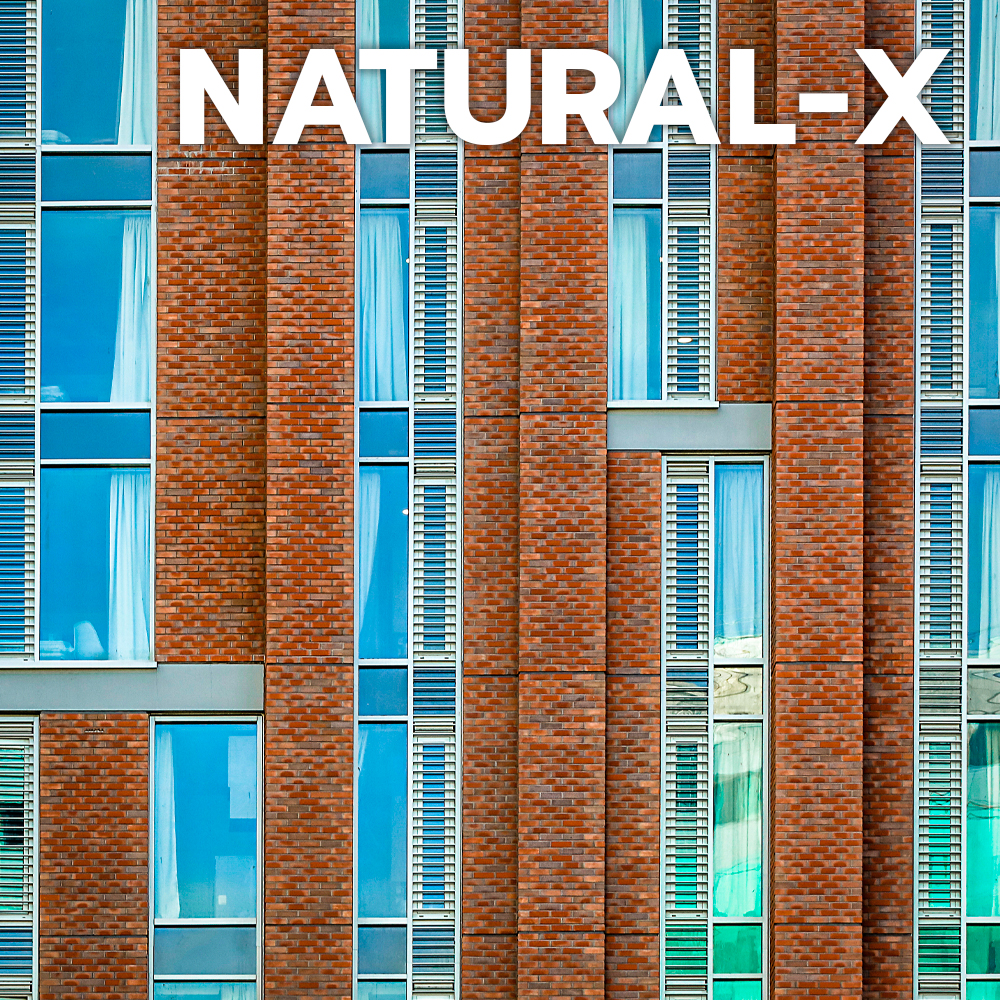

Natural X System

Natural X

Natural X is a lightweight, mechanically fixed cladding system delivering all the benefits of a natural clay brick façade. Featuring unique clay brick slips and 6063t6 grade aluminium support rails, the system is available in a wide range of colours and textures.

      • Fully mechanical secured brick slips
      • Pre-spaced mortar joints
      • Solid natural clay brick
      • Large reduction in structural load
      • Quick installation
      • CWCT tested

Natural-X Brick Slips

  • Uniquely profiled to engage with rail system
  • Prefabricated 10mm vertical mortar joints
  • Rated F2 ‘Severe Exposure’ Frost Resistance
  • Low water absorption – 2.4%
  • Colour range including: Red, Orange, Cream, Buff, Grey, Brown & White
  • Textures including: Smooth, Dragfaced, Sandfaced

Mortar

  • Mortar is applied by gun-injection – known as pointing
  • Parex Historic Lime Mortar should be used in line with system specification
  • 28 days full cure period
  • Network of Parex Approved applicators
  • Parex training courses available

Key Features

Non-Combustible

CWCT testing

Fast Track solution

Lightweight and non-load bearing

Thermal performance

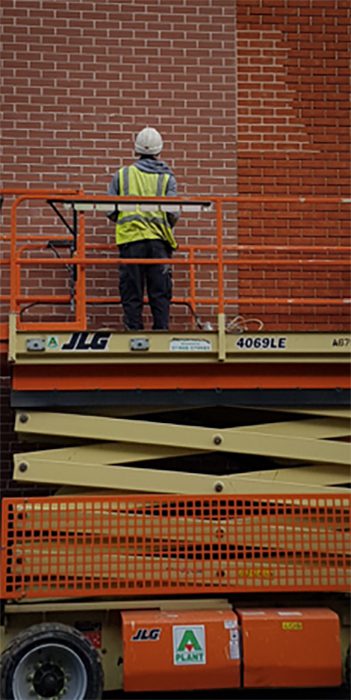

Can be installed from mechanical access equipment

Wide range of textures and colours

Universal sub structure
